PREPARING GRAIN FOR STORAGE
VOLUME I OF
SMALL FARM GRAIN STORAGE
BY
CARL LINDBLAD, PEACE CORPS
AND
LAUREL DRUBEN, VITA
ACTION/PEACE CORPS
VOLUNTEERS IN TECHNICAL
PROGRAM & TRAINING JOURNAL
ASSISTANCE
MANUAL SERIES NUMBER 2
VITA PUBLICATIONS
MANUAL SERIES NUMBER 35E
FIRST PRINTING SEPTEMBER 1976
SECOND PRINTING,
IN
THREE VOLUMES JULY 1977
THIRD PRINTING JULY 1980
VITA
1600
Wilson Boulevard, Suite 500
Arlington, Virginia 22209 USA
Tel: 703/276-1800 * Fax:
703/243-1865
Internet:
pr-info@vita.org
TABLE OF CONTENTS
INTRODUCTORY
The Purpose of
the Manual
The People Who
Prepared This Manual
How To Use This
Manual
SECTION 1: THE GRAIN
STORAGE PROBLEM
Introduction
Good Grain
Storage Is Important to Farmers
Grain Is a
Living Thing
What Happens to
Grain in Storage
Good Grain
Storage Depends Upon Better Drying and Better Storing
"Good Grain
Storage Helps Farmers"
Illustrations
SECTION 2: GRAIN IS
A LIVING THING
Characteristics
of Grain and How They Affect Storage
"Grain Is a
Living Thing"
SECTION 3: GRAIN,
MOISTURE, AND AIR
What Moisture
Is
Moisture in
Grain
Moisture in the
Air
How Air,
Moisture, and Grain Interact
Safe Moisture
Levels in Grain
Movement of
Moisture in Stored Grain
Where You Are
Now
SECTION 4: PREPARING
GRAIN FOR STORAGE
Introduction
Harvesting and
Threshing
Cleaning
The Need for
Drying
How Drying
Happens
Safe Drying
Temperatures
Testing Grain
for Moisture Content
"Preparing
Grain for Storage"
SECTION 5: GRAIN
DRYER MODELS
Sun Drying
Using Plastic Sheets
The Improved
Maize Drying and Storage Crib
Newer Drying Methods
A Simple Oil
Barrel Dryer
Instructions
for Using the Oil Barrel Dryers
The Pit Oil
Barrel Dryer
Philippines
Rice Dryer
Solar
Dryers: Part 1:
Construction
Part 2:
Operating Instructions
APPENDIX A:
Different Ways to Present Grain Storage
Information
APPENDIX B:
Information on Moisture Meters
APPENDIX C: Working
Paper on the Volunteer Role in Grain
Storage: "Problems Related
to Popularizing New
Farm-level Grain Storage Technology"
APPENDIX D:
Bibliography: Reprint of
Listings Prepared by
the
Tropical Products Institute, London
CONVERSION TABLES
PURPOSE OF THE MANUAL
Small Farm Grain Storage is a set of how-to manuals.
Together these
volumes provide a comprehensive overview of storage problems
and
considerations as they relate to the small farmer.
The authors
recommend the volumes be purchased as a set because the
material forms
an excellent and complete working and teaching tool for
development
workers in the field.
This grain storage information can be adapted
easily to meet on-the-job needs; it has already been used as
the
basis for a grain storage workshop and seminar in East
Africa.
This set of publications retains the purpose of the original
volume:
to bring together and to communicate effectively to field
personnel
1) the basic principles of grain storage and 2) the
practical solutions
currently being used and tested around the world to combat
grain storage problems.
Only the format has been changed to:
*
reduce printing and postage costs.
*
permit updating and revising one volume at a
time.
*
provide smaller books that are easier to
hold and use
than the large,
single volume.
*
make portions of the information available
to the user
who is especially
interested in only one or another of
the major aspects
of small farm grain storage.
Of course, it is impossible to cover all storage situations
in this
manual. But farmers
who understand the basic, unchanging principles
of drying and storing grain are better able to adapt ideas,
suggestions,
and technologies from other parts of the world to their own
needs.
This material was prepared for use by those who work to
facilitate
such understanding.
OVERVIEW OF THE MANUAL
Volume I, "Preparing Grain for Storage," discusses
grain storage
problems as they are faced by small-scale farmers.
This volume
contains explanations of the structure of grain, the
relationship
between grain and moisture, the need for proper drying.
One large
section contains detailed, fully illustrated plans for
constructing
a variety of small-scale grain dryers.
Volume II, "Enemies of Stored Grain," is an
in-depth study of two
major enemies:
insects and rodents. Each is
discussed in detail
with guidelines for 1) defining the size of the problem and
2) protecting
grain by both chemical and non-chemical means.
This volume
includes dose and use information for a variety of
pesticides, as well
as suggestions for preparing materials to be used in
audio-visual
presentations.
Volume III, "Storage Methods," contains a survey
of storage facilities
from the most traditional basket-type granary to metal bins
and cement
silos. The emphasis
in this volume is on improving existing facilities;
for example, there are detailed construction procedures for
an
improved mud silo.
Storage in underground pits and sacks also is
discussed. There are
guidelines for using insecticides in storage
situations. The
largest silo presented in detail is the 4.5 ton
cement stave silo.
THE
PEOPLE WHO PREPARED THIS MANUAL
Carl Lindblad served as a Peace Corps Volunteer in Dahomey
(Benin)
from 1972 to 1975.
As a Volunteer, Lindblad worked in programs
designed to introduce and popularize a variety of grain
storage
technologies. Upon
his return to the United States, he began the task
of pulling together this manual as a consultant to VITA and
Peace
Corps. At present,
he serves as a consultant to a number of international
organizations, specializing in appropriate technologies for
grain storage -- in the areas of planning, extension and
evaluation.
He spends much of his time in the field.
Laurel Druben served as an International Voluntary Services,
Inc.
Volunteer in Laos from 1966 to 1968.
While in Laos she was a
curriculum planner and a teacher of English as a second
language.
Subsequently, she worked with a consulting firm evaluating
government-funded
research and development projects, ran a small
education-oriented
business, and was a free-lance consultant and proposal
writer. Druben, who
has worked and lived in India and Micronesia,
as well as Southeast Asia, is Director of Communications for
VITA.
Many thanks are due to the skilled and concerned people who
worked to
make this manual possible:
A number of VITA
people provided technical review, artwork,
and production
skills:
Staff assistance
-- John Goodell
Section 4, Vol. I
materials -- Frederick Bueche
Technical review
-- Douglas Barnes, Merle Esmay, Henry Highland,
Larry Van Fossen, Harold Willson,
Kenton Harris
Artwork -- George
Clark, John Goodell, Kenneth Lloyd,
Nicholas Reinhardt, Guy Welch
Thanks are
extended to the following individuals and institutions
that provided
invaluable assistance in early stages of work on
the manual:
Mary Ernsberger and Margot Aronson, Peace
Corps Program and
Training
Journal, USA
Brenda Gates,
Peace Corps Information Collection & Exchange, USA
Tropical Stored
Products Center, TPI, Great Britain
Henry Barre and
Floyd Herum, Agricultural Engineering Department,
Ohio State
University, USA
Department of
Grain Science and Industry, Kansas State University,
USA
Agricultural
Research Service, Department of Agriculture, USA
Extension Project
Implementation Department, Ministry of
Agriculture,
Ethiopia
F. W. Bennett,
Midwest Research Institute, USA
Supervised
Agricultural Credit Programs (SACP), Belize
Peter Giles,
Nicaragua
Donald Pfalser,
Agricultural Cooperatives Development International
(ACDI), USA
Technical
Assistance Bureau, US Agency for International
Development
(AID), USA
International
Development Research Center, University of Alberta,
Canada
League for
International Food Education (LIFE), USA
Institut de
Recherches Agronomiques Tropicales et des Cultures
Vivrieres
(IRAT), France
Post-Harvest Crop
Protection Project, University of Hawaii, USA
Agricultural
Engineering Service, FAO
African Rural
Storage Center, IITA, Nigeria
Institute for
Agricultural Research, Ahmadu Bello University,
Nigeria
Swaziland Rural
Grain Storage Project
Jim McDowell,
Food Technology and Nutrition Section, UNICEF, Kenya
Gordon Yadcuik,
Centre Nationale de Recherches Agronomiques (CNRA),
Senegal
R. A. Boxall,
Indian Grain Storage Institute, A.P., India
Siribonse
Boon-Long, Ministry of Agriculture and Cooperation,
Thailand
Asian Institute
of Technology, Chulalongkorn University, Thailand
Merrick Lockwood,
Bangladesh Agricultural Research Council
International
Rice Research Institute (IRRI), Philippines
Dante de Padua,
University of Los Banos, Philippines
THE SPONSORING ORGANIZATIONS
Small Farm Grain Storage is part of a series of publications
combining
Peace Corps practical field experience with VITA technical
expertise
in areas in which development workers have special
difficulties
finding useful resource materials.
ACTION/Peace Corps
Since 1961 Peace Corps Volunteers have worked at the
grassroots level
in countries around the world in program areas such as
agriculture,
public health, and education.
Before beginning their two-year
assignments, Volunteers are given training in
cross-cultural, technical,
and language skills.
This training helps them to live and work
closely with the people of their host countries.
It helps them, too,
to approach development problems with new ideas that make
use of
locally available resources and are appropriate to the local
cultures.
Recently Peace Corps established an Information Collection
and
Exchange, so that these ideas developed during service in
the field
could be made available to the wide range of development
workers who
might find them useful.
Materials from the field are now being
collected, reviewed, and classified in the Information
Collection and
Exchange system. The
most useful materials will be shared with the
development world.
The Information Collection and Exchange provides
an important source of field-based research materials for
the production
of how-to manuals such as Small Farm Grain Storage.
VITA
VITA people are specialists who volunteer their free time to
answer
requests for technical assistance.
Many VITA Volunteers have lived
and worked in other countries, often as Peace Corps
Volunteers. Most
VITA people now work in the United States and other
developed
countries where they are engineers, doctors, scientists,
farmers,
architects, writers, artists, and so on.
But they continue to work
with people in other countries through VITA.
VITA Volunteers have
been providing technical assistance to the Third World for
almost
20 years.
Requests for assistance come to VITA from many nations.
Each request
is handled by a Volunteer with the right skills.
For example, a
question about grain storage in Latin America might be
handled by a
professor of agriculture, and a request for an improved
planting
implement would go to an agricultural engineer.
These VITA Volunteers,
many of whom have lived and worked in Third World countries,
are
familiar with the special problems of these areas and are
able to give
useful, and appropriate, answers.
VITA makes the expertise of VITA people available to a wide
audience
through its publications program.
HOW TO USE THIS MANUAL
Development workers can use material from this manual in a
number of
ways:
*
Discussions.
The manual provides clear presentations of grain
storage
principles from which you can take material to lead
discussions with farmers and village
leaders.
*
Demonstrations.
There are suggestions for demonstrations and
experiments
which you might find helpful to illustrate grain
storage
principles to farmers.
*
Leaflets.
Some of the material has been prepared in the form
of
illustrated leaflets which can be used directly by you
with a
farmer. They may require little or no
adaptation by
you.
But, if you prefer, you can use the
structure of the
leaflet and
substitute photographs specific to your area.
The material
on rodent control in Volume II is a good example
of this kind
of leaflet.
*
Construction Plans.
Many of the construction plans have been
simplified
so that you will be able to work more closely with
the
farmer. Some of the plans are fully
illustrated. You
could add
photographs of the work steps showing conditions in
your
area. It is likely that after you
introduce the material,
farmers can
follow the instructions themselves. The
plans are
written so that they would be easy to translate
into local
languages. The Improved Maize Drying
Crib in
Volume I is
a good example of a step-by-step, illustrated
presentation.
*
Checklists.
Some of the material most likely to be useful for
small-scale
farmers has been simplified and prepared in checklist
or hand-out
form. This material would lend itself to
illustrations or photographs, so it can better fit into the
local
situation. The checklists on
controlling grain storage
insect pests
included in Volume II are in this category.
*
Examples.
The appendices contain examples of leaflets that
have been
prepared by development workers in several countries.
These
examples have been included to give you some
idea of how
the materials in this manual might be organized,
illustrated,
translated, and presented to reach farmers.
*
Sources.
Wherever possible, addresses are given so that you
can write
for more information on a subject.
*
Further Information.
Other appendices contain information on
areas which, although important, cannot be
covered fully within
the scope of
this manual, for example, storage program
planning. A bibliography is
provided at the end of each volume.
These are some of the aims of Small Farm Grain Storage.
You will
probably find added uses.
While it is not possible to make this
manual specific to the situations or culture of your
particular area,
the information is presented so that you can do this very
easily by
making additions or substitutions to the material.
Dimensions are given in metric units in the text and
illustrations.
Conversion tables are provided at the end of each volume.
This manual will grow and change as its readers and users
send in
additional material, comments, and ideas for new approaches
to grain
storage problems and better ways to communicate with
farmers. Your
own ideas and conclusions are welcome.
A form has been included for
your comments.
Please send us the results of your silo or dryer
building. Let us
know how you used the information and how it could
be make even more useful to you.
Tell us how you changed a plan to
fit local needs.
Your experience will help us to produce manuals of growing
usefulness
to the world-wide development community.
REPLY FORM
For your convenience, a reply form has been inserted
here. Please
send it in and let us know how the manual has helped or can
be made
more helpful. If the
reply form is missing from your book, just put
your comments, suggestions, descriptions of problems, etc.,
on a
piece of paper and send them to:
GRAIN STORAGE
3706 RHODE ISLAND AVENUE
MT. RAINIER, MD 20822
U.S.A.
1
THE GRAIN STORAGE PROBLEM
INTRODUCTION
Farmers all over the world lose much of
their grain after it is harvested.
Farmers
work hard to plant and grow crops.
And
often they do not receive good returns
for their time and effort.
The grain is
attacked in the field and in storage by
insects, rodents, birds, and other pests.
The grain that pests do not eat, they
dirty with their droppings and their bodies.
Farmers have lived with these problems
for hundreds of years.
So they have
developed ways to deal with them.
Many old ways are wasteful, but a
number of the old methods are good
and must be kept until they can be
replaced or improved.
In recent years, however, the grain
storage problem has changed (and, in
some cases, temporarily worsened) as
steps toward full development have
been taken. For
example, now there
are new seed varieties which grow faster
and yield more grain.
Farmers plant these
new seeds, and this grain is ready for
harvesting earlier than it used to be.
This grain is ready to be harvested during
the rainy season.
The farmer has always
dried his crops in the sun, but there may
be little sun during this season.
Also,
it is likely this new variety of grain must
not be left to dry in the field:
if this
grain dries too long in the field, it will
shatter (break). But
if the farmer brings
the grain from the field and stores it
before bringing the moisture content of
the grain down to 13% or lower, the grain
will rot and mold.
<FIGURE 1>
The farmer must find a way to dry his grain,
store it safely, and plant another crop -- all
in the time he used to spend on one crop.
His many old methods must be changed to help
with new problems.
<FIGURE 2>
The Problem
The basic question then is how to help farmers protect their
grain from
attack. The answer
must be to give the farmer enough information about
harvesting, drying, storing, insects, rodents, and molds so
that he can
fight the problems successfully.
No one can find answers to problems
without having enough information about the subject.
Farmers need to know that there are steps they can take to
protect their
own grain. Perhaps a
farmer can save significant quantities of grain
by making a simple change in the way he is doing things
now. Perhaps
there is another way of drying or of storing which fits into
his situation
well. A farmer needs
to be presented with ideas that can be demonstrated,
that make sense to him, and that fit into his life
easily. This is done
by supplying technology and help which is appropriate.
With this kind
of help, change for the better is more likely to take place.
The following chapters offer many ideas about the grain
storage problem.
The materials have been prepared to make them easy for you
to use
in your work. The
manual should help you get information to those
who can use it.
GOOD GRAIN STORAGE IS IMPORTANT TO FARMERS
When people in universities and government agencies talk
about storage,
they are discussing a serious subject.
They talk about such facts as
these:
*
approximately 30% of grain in storage all
over the world is
being lost
because of insects, rodents, and molds.
*
improving grain storage would mean less
hunger, improved
nutrition for
the individual, and a higher standard of living
and a sounder
economy for the nation.
*
quality grain for international trade is of
increasing importance.
*
improper storage of grain leads to weight
loss, monetary
loss, seed
loss, quality loss, food loss.
These concerns are real.
And there is a definite need for people to
deal with grain storage questions at this level.
Many new ideas and
plans result from the testing, thinking, and planning being
done all
over the world by scientists, teachers, and researchers.
But when small farmers talk about grain storage problems,
they are
talking about their livelihood.
And there are some very important
reasons why grain storage questions are of concern to them.
Food for the Family
Grain is very likely the single most important
thing eaten by the farmer and his family.
Whether it is maize, wheat, rice, millet, or
sorghum, it is important for his family.
The
farmer may not think about grain losses and
use words like quality and quantity.
But he
can see that insects, rodents, and molds ruin
a lot of his grain, and that there is not as
much for his family to eat.
He can taste
the difference between clean grain and grain
which has been damaged by mold.
Farmers feel
the loss of grain and the need for better
storage when they run out of grain for food
before the next harvest.
Then they must use
what little money they have to buy food.
Or
they must borrow against the next crop and
start out in debt.
<FIGURE 3>
Another food loss is harder to measure.
But it is real.
Some insects
eat out the best parts of the grain.
These are the parts which contain
the vitamins and minerals which make grain the healthy food
it is. The
farmer may not see this loss.
But he should be told about it.
Lack of
nutritious food can lead to sickness and more problems.
Seed for Planting
Part of the harvested grain is the seed for the
next crop. The
farmer must let the seeds rest
in a cool, dry place before he plants them.
Poor storage of seed grain means that some of
the seeds, or many of them, will not germinate
(grow) when they are planted.
If the seeds are
not stored well, the farmer will have to plant
many extra seeds to get enough plants.
Often
seed grains that have not been stored well do
not grow well: they
may grow at different speeds.
This causes problems with cultivating and harvesting
the grain.
<FIGURE 4>
Money to Fill Needs
A farmer usually must buy some of the tools and equipment he
needs for
home and farm use.
He may need to purchase corrugated metal sheets for
building, metal pots for cooking, metal tools for farming,
or cloth for
making clothes. To
get items which he cannot make himself, the farmer
has to offer money, or he has to barter.
Most farmers sell the grain they
do not use for food or seed to get money.
Or they trade the grain for
the things they need.
<FIGURE 5>
Because of poor drying and storage facilities, farmers
cannot keep their
grain safely for any period of time.
They are forced to sell the grain
soon after harvest.
The prices are low at this time because no one needs
grain. Everyone is
harvesting, and there is plenty of grain available.
Until the farmer can dry and store his grain safely, he is
not going to
grow much more than he needs for his family.
This lack of safe storage
means that total production of grain remains low.
Most farmers will not think in terms of country-wide
production. But
they will have in mind some things they would like to do if
they had
more money. Good
grain storage can lead to more food, more money, better
seed, and a better future.
GRAIN IS A LIVING THING
Grain has certain characteristics which farmers must
understand if they
are to be able to dry and store their grain well.
Here are some of the
characteristics of grain which will be discussed:
*
Growth of seed grain.
*
Protection of the kernel by the seed coat.
*
Respiration (breathing) of grain kernels.
*
Moisture (water) in grain kernels.
*
Moisture movement between grain and air.
Farmers know a lot about planting and growing grain.
But most farmers
will not think about grain in all the ways listed
above. If they do
become aware of these characteristics of grain, the reasons
for good
grain storage are going to make a lot more sense to
them. And farmers
are going to be able to do more toward solving their own
problems.
WHAT HAPPENS TO GRAIN IN STORAGE
Keeping grain safe in storage depends upon a number of
things.
Moisture, temperature, insects, and molds, for example, all
can cause
changes in grain put into storage.
All factors which are most important
to good grain storage are presented in the following
paragraphs;
some are discussed in greater detail in other places in the
manual.
REMEMBER: All of the
following points are related to one another.
Insects
<FIGURE 6>
Insects and their part in grain storage are the subject of
another section
It is an important section.
Insects eat and ruin a lot of grain.
Because
they grow inside the grain kernels, some insects are not
found in grain
until after they have done a lot of damage.
The section on insects will
give information on the major grain storage insects, on
where to look for
them, and on how to control them.
Insect activity, and the damage which results from this
activity, is
closely related to temperature and moisture in stored
grain. It only take
a few insects in the right conditions -- for example, in
warm , moist
grain -- to make enough moisture and heat so that large
numbers of insects
can grow. More
insects will make more heat and water, and so on.
They
create the right conditions for the growth of molds.
Molds
Molds are very small plants.
They are so small they cannot be seen on
grain, but they are always there on the grain kernels.
In warm, moist
grain, they will germinate (grow) and produce threads called
hyphae. These hyphae
push through the seed coats of grain kernels and
attack the embryos of the grains.
Molds cause damage in a number of ways
*
They produce chemicals called enzymes which
can stop seeds
from
germinating and growing into new plants.
*
They decrease the quality of the grain for
food and for
market.
*
Some molds produce chemicals which can
poison people.
Farmers certainly are familiar with the sight and smell of
grain damaged
by mold. But they
are probably not aware of the conditions that lead to
molding, and they may not know what they can do to protect
their grain
from mold. Helpful
information and suggestions are presented later.
Moisture Content (Wetness)
Drying grain, and keeping it dry in storage, is the most
important part
of good storage.
Many problems of grain storage are caused by moisture.
Both grain and air have moisture, and they act together in
ways that are
important to understand.
Therefore, a following section discusses
moisture content in grain and in the air; it also explains
how moisture
in grain and moisture in the air are important to each
other.
<FIGURE 7>
Temperature
There are two temperatures which are important.
One is the outside
temperature of the air; the other is the temperature of the
air and grain
in the storage place.
It is easier to store grain in areas where the air
temperature is low or
never gets too hot.
In very cold weather, insects and molds do not grow
very quickly, or at all.
Seeds do not breathe as much.
In warm places, the grain is warm when it is put into
storage. Then, as
the outside temperatures go up, the temperature in stored
grain is likely
to get even higher.
When the temperature in the grain goes up, certain
things start happening:
*
Insects start growing and breeding.
*
Mold spores start multiplying.
*
Molds, insects, and grains all live and
breathe faster,
causing heat,
water, and carbon dioxide to increase in
the stored grain.
Even in this brief look at temperature, it is easy to see
the need for
keeping grain cool and dry.
Keeping storage containers protected from
the hot sun is important.
Farmers who understand this fact have discovered
an important grain storage principle.
Rodents
Rats and mice eat a lot of grain.
They can eat the whole kernels of
grain sorghum, wheat, and millet.
They chew on ears of maize.
Rodent damage is the easiest kind of
damage to see. Yet
farmers may not
realize how much damage rodents can
do; they may not be aware that rodents
spread diseases. Or
they may not know
what they can do to stop rodents from
eating their stored grain.
The section on rodents gives information
on the habits of rodents, the signs of rodents that a farmer
should
look for, and some ideas for keeping rodents out of stored
grain.
<FIGURE 8>
Clean Grain and Clean Storage Places
Farmers often do not realize how important it is to clean
the place for
storing grain. Even
grain that is healthy and whole when put into
storage can be damaged by insects or ruined by molds if
stored incorrectly.
Farmers need to know that good grain storage requires
planning for a good
storage container or place, and careful handling and
cleaning of the grain.
<FIGURE 9>
Many farmers can improve the condition of
their stored grain simply by cleaning and
repairing their present grain storage
containers and buildings, and by putting
only healthy grain into storage.
This
manual helps spell out the necessary
steps for farmers who wish to improve,
(1) the quality of the grain they store,
and (2) the container into which they put
the grain.
GOOD GRAIN STORAGE DEPENDS UPON BETTER DRYING AND BETTER
STORING
Improved Drying
As mentioned before, drying is the key to storing grain
safely. The
section on "Preparing Grain for Storage" covers
the importance of
careful harvesting, threshing, and moisture measurement
before putting
the grain into storage.
"Grain Dryer Models" presents plans for a
number of grain drying methods.
Improved Storing
The manual section on storage
discusses methods already being
used by farmers, and gives ideas
for improving these methods.
Also,
the section provides plans and
construction procedures for a number
of grain bins. Each
of the
storage methods is presented in
terms of its possible advantages
and disadvantages for use by farmers.
<FIGURE 10>
Your Role
You will have to decide how to use the materials in this
manual. Some
farmers may be ready to make a mud silo; others require
information on
good storage practices for storing grain in sacks.
One village may be
ready to make an oil barrel dryer.

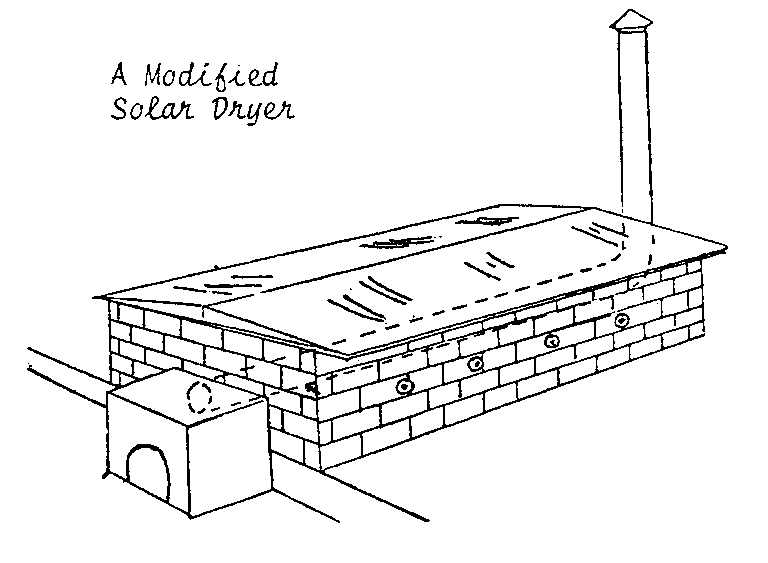

Another village might like to try
solar dryers. These
are decisions which you and the farmers in your
area must make together.
The purpose here simply is to provide information
upon which good decisions can be made, and to provide some
basic guidelines
in important grain storage areas.
The following leaflet provides an illustrated look at what
good grain
storage can do for farmers.
GOOD GRAIN STORAGE HELPS FARMERS
Suggested Uses: This
is a script which could be used to alert farmer
to
the need for improved storage. Choose
the points
you
feel are most important and have them translated
and illustrated as necessary.
*
A good crop of grain means plenty of food.
*
Farmers work hard to grow their grain.
Grain is important.
*
A good crop means seed for planting the next
crop.
*
A good crop means you can buy things for
your family and
farm.
*
But you must have a good place to keep your
grain after the
harvest.
You cannot use all the grain right away.
*
It is not good to sell grain right after
harvest. The
price for grain is lower at harvest time
because more
grain is
available than at other times of the year.
*
You cannot eat all the grain.
You will want some later.
*
Seed grain must be stored safely until
planting time.
*
A good grain storage place is a place to
keep grain safe
until you
want to sell it, to eat it, or to plant it.
*
There are many ways to store grain.
Some farmers store
grain in
sacks. Some farmers store grain in clay
jars
and in the
rafters of their homes. Some farmers
store
grain in
special buildings.
*
All grain storage places must protect the
grain from
insects,
mice, rats, and other pests.
*
Rats and mice enter open grain storage
places easily.
They can eat
and spoil a lot of grain every day.
*
Birds and chickens like to eat grain too.
*
Many insects attack stored grain.
*
Insects get into grain very easily.
Some of them can fly,
and some
begin eating the grain in the field before harvest.
*
Insects lay many eggs.
These insects eat and spoil a lot of
your grain.
*
Insects, rats, and mice eat so much grain
that soon there is
less for you
to sell and eat.
*
Insects and rats put the droppings from their
bodies on the
grain while
they are eating. This makes the grain
dirty.
You cannot
make as much money when you sell this grain.
*
People get sick from eating grain which rats
and insects
have put
droppings on.
*
Molds also attack stored grain.
*
Molds are tiny plants.
You cannot see these plants.
Mold plants
float in the air and need warmth and
moisture to
grow. Mold plants usually are on stored
grain even
though you cannot see them.
*
Molds give grain a bad smell and change the
color of
the grain.
*
Molds like to grow in warm, wet storage
places, so you
must keep
grain cool and dry.
*
People can get sick if they eat grain with
mold on it.
*
It is important to keep insects, rats,
molds, and other
dangers away
from your stored grain. Good grain
storage
means more
money and more food.
*
Your extension worker can help you with
grain storage problems.
He knows how
you can fight insects, rats
dangers.
He will have ideas on ways you can improve
your
grain
storage.
The following pictures show how one artist has chosen to
present the
subject, "Good Grain Storage Helps Farmers."
As you can see, he has
chosen a certain number of important ideas from the scripts
and
highlighted them using pictures.
Perhaps these pictures will provide
you with ideas for illustrating your own leaflets.

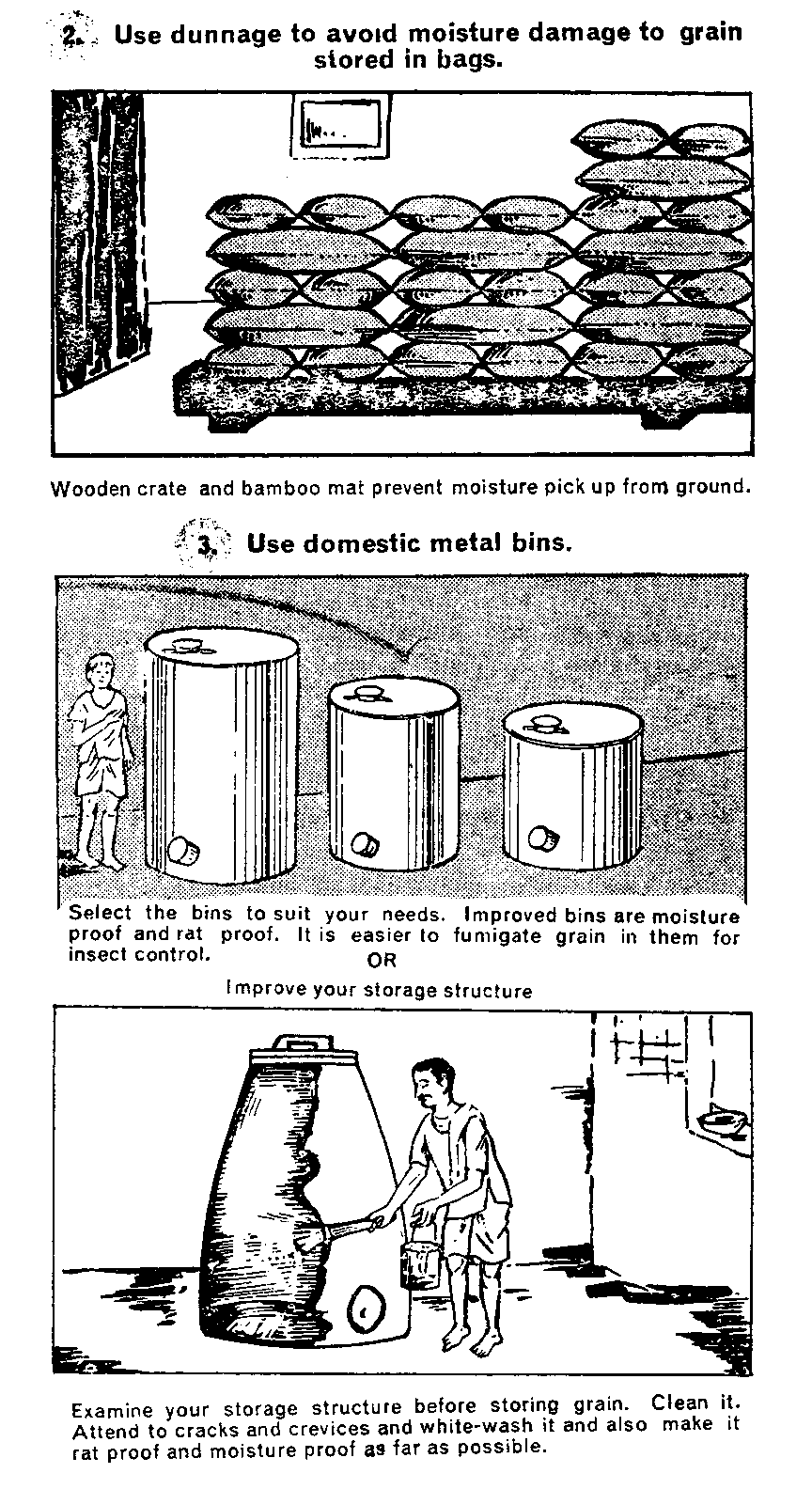

<FIGURE 11>
<FIGURE 12>
<FIGURE 13>
<FIGURE 14>
<FIGURE 15>
<FIGURE 16>
GRAIN IS A LIVING THING
The Structure of Grain
Grain kernels are
living things. Grain which will be used
for seed must
be kept alive.
Living seeds also store better.
Maize, rice,
sorghum, wheat, millet, and so on, are all cereal grains
which belong to the
same grain family. As you know, these
grains do not
look alike.
Maize is a large kernel with a triangular
shape; it has a
hard coat and a
large, oily germ which is easy to see on one end of the
kernel.
Sorghum, on the other hand, is a round seed
in a brittle or
leathery seed
coat. The germ is very hard to see.
Although they look
different, the grains all share three basic parts:
the seed coat; the
endosperm; the embryo (germ).
<A RICE
KERNEL>
The Seed Coat
*
Surrounds the embryo and the endosperm.
*
Protects the grain from attack by certain insects if
it is dry and un-cracked.
*
Cannot keep out molds and some insects.
Those insects
which attack the embryo are most
dangerous because the
seed coat at the embryo is weak.
The Endosperm
*
Takes up the largest part of the seed.
It is 80% of
the kernel volume in most grains.
*
Is the seed's food storage place.
It is mostly starch
and protein.
*
Provides food for the developing seed when planted and
food for the seed in storage.
*
Provides food for farmers and others if the seed is not
planted.
The Embryo
*
Is the part of the seed which can develop into a new plant.
*
Contains most of the protein, fat, and vitamins of the
grain.
*
Is attacked easily by some insects and by molds.
Seed
grain which is attacked will not grow
into strong plants
or will not grow at all.
Food grains without embryos do
not provide as much nutrition as
grains with embryos.
CHARACTERISTICS OF
GRAIN AND HOW THEY AFFECT STORAGE
Healthy grain can be
kept in storage longer than grain which is broken.
The threshing
methods used by farmers often damage many of the grains.
If the grain is to
be threshed before it is stored, the threshing must
be done very
carefully. Careful handling of the
grains helps the grain
protect itself from
danger. Here are examples of ways in
which healthy
grains are protected
by their structures:
*
The husks on maize ears protect the grain from
damage during harvesting
and drying.
*
The husks on rice kernels protect that grain
from attack by most
insects.
*
A hard, dry seed coat with no cracks or splits in
it prevents molds and
insects from getting into
the kernel easily.
*
The endosperm of dry grain is hard and is not as
easily attacked by
insects.
<FIGURE 17>
Stored rice or wheat
or maize, etc., act in one way or another because
each has certain
characteristics which are affected by the ways it is
stored.
A farmer should know the characteristics of
the particular
grain he is storing.
Because there are
many kinds of grain, this manual can not talk a lot
about each.
Here it is most important to point out that
the structure
of the grain (the
way it is made) plays an important part in what does
or does not happen
to that grain in storage. The structure
of the grain
affects the length
of time the grain can be stored and the kind of
storage container it
should be put into. You may want to
prepare materials
for the farmers in
your area which talk directly about the structures
of the grains they
grow and which storage containers are best for their
grain.
Respiration
Grain breathes.
Each kernel gets oxygen
from the air and
burns food from its
endosperm.
This process gives off heat and
and carbon
dioxide. This process in grain
is called
respiration. Respiration is faster
or slower depending
upon the temperature and moisture in the grain.
Respiration is slow
when grain is cool and dry. There is
only enough
respiration to keep
the embryo of the grain alive. This
process can continue
in storage for a
long time if the embryo is not attacked by mold,
insects, or high
temperatures. Slow respiration is important
for storage.
Growth does not
happen at this low respiration level, but seed life
continues.
<FIGURE 18>
<FIGURE 19>
If the stored grain
has too much moisture or heat in it, the grain begins
to respire
faster. When seed grain is planted, for
example, it germinates
(grows) because
respiration has been speeded by water in the ground and the
warmth of the soil.
<FIGURE 20>
The way that grain,
moisture, and temperature work together is important
for farmers to
understand. Grain put into storage with
a lot of moisture
in it breathes much
faster than dry grain does. This moist
grain makes
more heat and
creates conditions leading to mold growth and insect
attack.
The farmer who understands this will see the
need for storing
cool, dry grain.
Heat Producing and
Heat Holding
Grain produces heat
during respiration. If
the grain is cool
and dry, it respires very
slowly and the
amount of heat it makes is
very small.
But if respiration gets faster
for some reason,
grain makes more and more
heat.
Spots of hot air form inside the storage
container because
the stored grains hold the
heat.
<FIGURE 21>
The temperature
outside the storage container does not have an immediate
effect on the grain
in large silos, but it can be a problem for the
farmer who has a
small metal storage bin which stands by his front door
and faces the sun
for some hours each day. The heat from
the sun warms
the bin, and this
warming spreads to the grain inside.
Any insects and
molds present in the
grain will grow much more quickly.
Moisture
All harvested grain
holds a certain amount of
moisture.
Most of the moisture is inside the
kernel; if the grain
is very wet, some of the
moisture is around
the outside of the kernel.
Farmers must dry the
grain until it only
holds about 12-13%
moisture if they are to
store grain
safely. Since moisture and drying are
so important, they are
discussed more fully
in another section.
<FIGURE 22>
Grain has other
characteristics, such as flow and pressure.
These are
subjects not
particularly important to a small-scale farmer.
Mainly he
needs to know what
the grain looks like inside and what there is about
grain that makes it
act in certain ways in storage.
GRAIN IS A LIVING THING
Suggested Uses:
Select points as needed.
Translate and illustrate
them for distribution to
farmers in your area.
*
Each kernel of grain is a living thing.
Each grain is a
seed.
*
A seed can grow into a new plant just like the one it came
from.
*
Most of the seed is food around a tiny part of the seed
called the embryo.
Some people call the embryo the germ
of the seed.
*
This embryo is the part of the seed that will grow into a
new plant.
*
One part of the embryo will form the shoot that grows
above the ground.
*
The other part of the embryo will grow and become the
root of the plant.
This is the part of the plant that
grows under the ground.
*
There is a seed coat around the food and embryo.
This coat
protects the grain from being
hurt. Careful harvesting,
threshing, and storing will protect
the seed coat.
*
While they rest, seeds breathe and use the food that is
inside them.
*
Seeds stay alive and are good for planting and selling if they
rest in places which are cool and dry.
*
A good grain storage place must be cool and dry.
It must protect
the grain from insects and other
dangers.
*
Do not use high heat to dry the grain you are saving to plant
with.
High heat will kill the embryo.
*
Store your seed grain separately from the grain you plan to
sell or to use for food.
*
Check the grain often. Make sure
it is dry. Do not let it
get too warm.
Make sure there are no insects in it.
Smell
it to see if molds are present.
*
Good storage of your seed crop means the next crop will be a
good crop.
The living grain will grow into a new plant when
you put it into the earth.
<FIGURE 23>
GRAIN, MOISTURE, AND
AIR
WHAT MOISTURE IS
Moisture is water or
wetness. But moisture is a better word
to use when
talking about grain
storage. When farmers use the word
water, they are
likely to think of
lakes, rivers, wells, or containers of water.
They
think of water as a
liquid which is very easy to see and to measure.
A farmer may not be
familiar with the word moisture. Moisture
is a good
word because it can
describe something which is wet or contains water
without looking
wet. For example, the earth can have
moisture and not
look wet.
A plant does not look wet, but when you
crush it, you will
feel moisture
(wetness) on your hand.
MOISTURE IN GRAIN
Each kernel of grain
has moisture inside. But the grain
kernel does
not look wet when
you look at it. The farmer can tell if
it is wet by
cracking it between
his teeth. Wet grain is not hard
because the water
inside is wetting
the seed and keeping it soft, just like pouring water
on hard earth makes
the dirt soft. When the moisture leaves
the grain
during drying, the
grain becomes harder. The dryer the
grain, the harder
it becomes.
<FIGURE 24>
Grains hold
different amounts of water at different times:
the amount of
moisture in
harvested grain depends mostly on the time of the harvest.
For example, grain
harvested in the rainy season may have more moisture
than grain harvested
in dry, sunny weather.
It is important to
note that some grains must contain more moisture than
others when
harvested, if they are to be harvested safely.
This is true,
for instance, of new
varieties of rice. This rice must be
harvested
before it gets too
dry, or much of the rice will shatter or fall off the
stalks.
Both maize and rice can be harvested when
the moisture content
in the kernels is in
the 20% range. However, maize can be
left in the
field to dry further
before harvesting. Rice must be
harvested right
away and not be
allowed to dry in the field.
MOISTURE IN THE AIR
Air contains
moisture also. Of course, the farmer
cannot see this kind
of wetness when he
looks at the air, because the moisture in the air is
in the form of
vapor.
<FIGURE 25>
Just as grains hold
different amounts of water, air holds different
amounts of
water. Warm air can hold more moisture
than cool air.
On a very hot day,
there can be a lot of moisture in the air, When
evening comes and
the temperature goes down, the air, now cooler,
cannot hold all the
moisture it held when it was warmer. So
the
extra moisture falls
out of the air and lands on the earth.
This
moisture from the
air is the dew seen in the cool early morning.

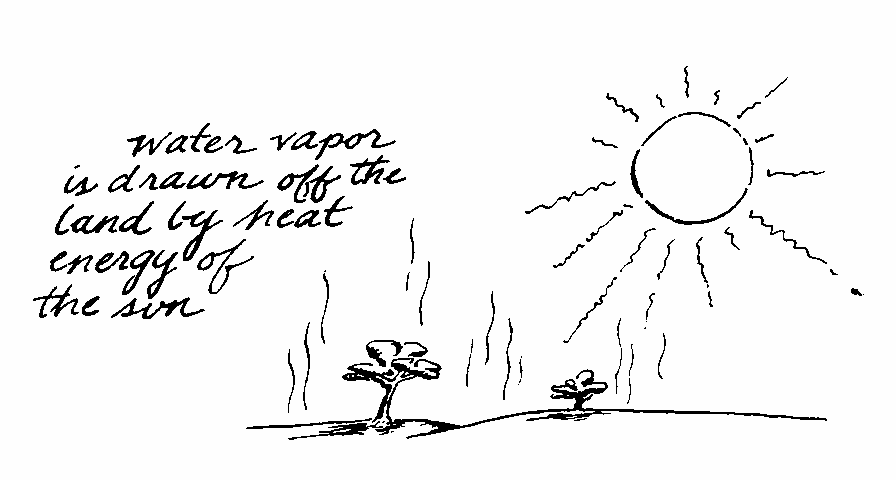

As the sun gets
higher during the day, the air temperature goes up.
The air, now warmer,
can hold more moisture. So the dew on
the land
is taken up by the
air.
<FIGURE 26>
Relative Humidity
Many farmers will
not be familiar with words such as relative humidity.
Nor do they really
have to be. It is not important to most
farmers to
understand that
relative humidity is a percentage measurement of the
amount of moisture
actually in the air as compared to the maximum amount
of moisture that air
at that temperature could hold. Nor do
most farmers
need to understand
that if the moisture content in the air remains the
same and the air
temperature goes up, the relative humidity goes down.
Relative humidity is
a meaningful phrase only to those who can measure
it and apply the
knowledge to drying times, etc.
Most farmers do not
have instruments which measure relative humidity.
But they have good
information if they understand two facts about air and
moisture:
1.
Warm air can hold more moisture than cold air.
2.
Air at any temperature does not always hold as much
moisture as it possibly can.
The amount it actually
holds changes.
When air holds as much water as it
possibly can (100% relative
humidity), rain is likely.
HOW AIR, MOISTURE,
AND GRAIN INTERACT
Scientists say that
grain is hygroscopic because it loses or gains (adds)
moisture from the
air around it. At this point, it would
be easy to get
involved in a long
discussion of moisture and vapor pressure.
For example:
Since all things containing moisture have
pressure, grain
and air have pressure.
Grain dries in the sun because
moisture vapor is moving from higher
pressure in the
wet grain to lower pressure in the air,
until the grain
and the air reach equilibrium vapor
pressure.
This can be explained somewhat more
simply by saying that
two things containing water will push
that water back and
forth until a balance is reached.
The more moisture there
is, the harder the moisture can
push. That is, if there is
comparatively more moisture in the grain
than there is in
the air around the grain, the moisture in
the grain will
push out into the air.
The key to the drying process, then, is
placing grain in the
sun or in a drying machine so that the
kernels of grain can
be touched by warm moving air which has
less moisture in it
than the grain has.
The heat in the moving air will make the
moisture in the grain evaporate.
The moisture will become
water vapor and be absorbed and carried
away by the moving air.
It is useful for a
farmer to know that drying continues only as long as
the air around the
grain is able to absorb more moisture from the grain.
If the air contains
a lot of moisture, the grain is likely to take in that
moisture from the
air. The farmer should understand this
fact because
it explains the need
to keep dry grain away from moisture and/or air as
much as
possible. Grain that is not sealed in a
closed container will
continue to exchange
moisture with the air. During the rainy
season,
for example, grain
will take on moisture if left in an open container.
In the hot, dry
season, grain will lose the moisture again.
<FIGURE 27>
SAFE MOISTURE LEVELS
IN GRAIN
Grain put into
storage should not have more than a certain amount of
moisture inside its
kernels. Although the amount of
moisture grain
can hold in storage
safely can change, depending upon storage conditions,
some general
moisture-safety percentages have been established.
The chart which
follows(*) shows that maize can be stored safely at 13.5%
moisture (that is,
13.5% of the total weight of the kernel can be
moisture), in air
which is 25-30 [degrees] C and has 70% relative humidity (that
is, the air at this
temperature can hold 30% more water than it is
holding).
At this point the kernel of maize and the
air are not going
to exchange moisture
back and forth. This is an equilibrium
point.
This equilibrium is
the condition good grain storage tries to set up,
but it is very hard
to keep grain stored at conditions which keep
equilibrium.
MAXIMUM
MOISTURE CONTENT FOR ONE
YEAR (OR
LESS) STORAGE AT 70%
GRAIN TYPE
RELATIVE HUMIDITY AND 27 [degrees] C
Wheat
13.5%
Maize
13.5%
Paddy Rice
15.0%
Milled Rice
13.0%
Sorghum
13.5%
Millet
16.0%
Beans
15.0%
Cow Peas
15.0%
Remember, the
figures above are maximum recommended moisture levels.
Generally, farmers
should dry their grain as thoroughly as possible.
*
From "Handling and Storage of Food Grains in Tropical and
Subtropical
Areas," by D.W. Hall, published by
Food and Agriculture Organization of
the United Nations, 1970.
MOVEMENT OF MOISTURE
IN STORED GRAIN
Grain which is dry
and cool will keep for a long time if it is stored
correctly.
However, there are a number of bad things
which can happen
to grain while it is
in storage. And moisture is a key part
of most of
the process of
deterioration (spoiling) that can occur in stored grain.
To discuss the role
of moisture in the storage container, it is necessary
to talk about:
*
grain condition
*
temperature
*
insects, molds, and grain heating.
Grain Condition
The farmer must
store only clean, healthy grain which has been dried
to safe storage
levels.
Broken grains and
pieces of straw or dirt increase the chances of storage
trouble.
And, if the storage container does not keep
out moisture
or insects, even
healthy, clean, dry grain can deteriorate.
Trouble
is less likely to
happen if the grain starts in good condition.
Temperature
There are two kinds
of temperature: temperature in the air
outside the
storage container
and temperature of the grain inside the storage container.
Some things to remember
about temperature:
*
Low temperature is better than high temperature for
grain storage.
Insects and molds do not grow at low
temperatures.
*
Grain breathes very slowly at low temperatures.
*
At low temperatures, little heat builds up inside the
grain from the living and breathing of
insects and
molds -- and the grain.
*
Rising temperatures outside the containers can increase
the temperature inside the container
-- particularly if
the container is not shaded or is made
of metal.
*
Rising temperatures can lead to
insect and mold growth.
Even in
grain that looks clean, insects are
almost always there to some degree;
mold spores are present everywhere.
As the temperature of the grain goes
up, these insects and molds will
start to grow.
*
As the temperature goes up, molds and
insects grow faster.
The grain respires
more quickly.
If the grain contains
a lot of moisture, this process goes
even faster.
*
Hot spots can form in areas of the grain where the most
mold and insect activity is
occurring. These hot spots
spread and cause great damage and loss
of the stored
grain.
<FIGURE 28>
The above points
show how temperature and moisture work together.
Therefore, grain
placed into storage should be as dry and cool as
possible.
Even then there can be a moisture problem
during storage.
This problem often
is the result of a difference in temperature between
the inside and
outside of the storage container. When
cool air and
warm air mix in the
stored grain, the warm air cools and may be forced
to lose
moisture. This lost moisture becomes
water which can be seen
at the top and
bottom of the storage container. The
following drawings
show what may happen
when there are differences in temperature between
the inside and
outside of the storage container:
<FIGURE 29>
These changes caused
by temperature can be seasonal, or they may be daily.
This depends upon
where the farmer lives. Obviously, it
is best to keep
stored grain at a
relatively constant temperature. The
storage section
will show various
ways of dealing with this problem.
Insects, Molds, and
Grain Heating
Remember the dew and
how it forms because cold air and warm air cannot
hold the same amount
of moisture? This same thing is what
happens in
stored grain when
cold air and warm air meet each other because of
changing temperatures.
The farmer who understands dew will be able
to
understand how his
grain got caked and moldy even if it was dry when he
put it inside the
storage tin or container.
The pools of water
formed by the moisture forced out of the air make
the stored grain
wet. This wet grain begins to respire
at a faster and
faster rate.
If there are insect larvae and mold spores
present, they
begin to grow and
reproduce. Soon the insects, molds, and
grain all are
giving off
heat. This process produces the hot
spots spoken of earlier.
When the temperature
gets too high, insects will leave the heated spot
and go out into the
grain mass to find better living conditions.
Other
trouble spots then
can develop.
<FIGURE 30>
WHERE YOU ARE NOW
Now the background
for the subject of grain storage is complete.
If
you have been using
this manual with a farmer or group of farmers, they
now know what grain
is in a scientific way; the relationship among grain,
water, air, and
temperature; and some of the ways grain storage problems
occur.
In other words, they have some scientific
ideas about good
grain storage.
The next section deals with the subject of
preparing
grain for
storage. That discussion applies some
of the ideas from this
section.
<FIGURE 31>
4 PREPARING GRAIN
FOR STORAGE
INTRODUCTION
This section
discusses the steps a farmer should take to prepare grain
for storage.
It gives these steps in the order he takes
them. Each of
these steps is
looked at here as an important part of the storage
process.
Good harvesting, threshing, cleaning, and
drying practices are
important for the
success of any storage method a farmer may use.
HARVESTING AND
THRESHING
Some grains, such as
new varieties of rice, should
be harvested when
they contain quite a bit of
moisture.
Other types of grain, such as maize,
can be much drier
when harvested. But even when
the grain can be
allowed to dry in the field,
there is often too
much moisture in the air,
or even rain, and
the grain does not lose a lot
of its
moisture. Therefore, for one reason or
another, the farmer
has to harvest very moist
grain.
Then he must somehow dry the grain to
about 12-13%
moisture content.
<FIGURE 32>
If the grain is a
variety which can be allowed to
dry in the field,
and if the weather is good, the
farmer can let his
grain get as dry as possible
while it is still in
the field. In some dry, sunny
places, it is
possible to shock and windrow the
grain after cutting
it. Wheat, for example, is
tied in small
bundles that are stacked together
side by side.
Maize is also often stacked in
shocks.
This practice allows the grain to dry
further.
But this practice requires good weather.
And rodents, birds,
and insects can attack the grain
while it is drying.
<FIGURE 33>
Threshing is the
separating of grain kernels from stalks and husks.
A
small-scale farmer
usually cuts and threshes grain by hand.
When this
method is used,
farmers must be careful to make sure all weeds and
straw are separated
from the harvested grain.
<FIGURE 34>
There are serious
problems in most hand-threshing methods, especially
for small
grains. A common method uses trampling
or beating of the grain
to free the
kernels. This method often causes
cracking of the grain.
In addition, unless
threshing is carefully done, much of the grain is
thrown away with the
husks.
<FIGURE 35>
No matter what
method the farmer uses for harvesting and threshing, he
should aim for
clean, whole grain. There are machines
available which
can harvest and
thresh grain at the same time. Most
small farmers
cannot afford these
machines. And for the small farmer,
hand harvesting
has advantages:
it is easier to separate weeds from the
grain,
and less grain is
lost during the harvest.
CLEANING
Clean grain keeps in
storage much better than dirty grain.
After harvest,
grain often contains
small amounts of straw, weed seeds, and dirt.
These
unwanted materials
decrease the value of the crop if they remain in the
grain.
They also cause the grain to deteriorate
during storage. Dirt
holds moisture, insects,
and molds. Dirt also keeps air from
moving well
through the
grain. Dirty grain heats more and
deteriorates more quickly
than clean grain
does.
Insects also must be
removed from the grain. Those which eat
the grain
cause damage in
several ways. They destroy much of the
grain by eating
it.
As they grow and multiply, insects produce
heat which can cause
grain to spoil more
rapidly. Grain with a lot of insects in
it brings
a much lower price
than clean grain does.
Most modern
harvesting machines get grain pretty clean.
They usually
blow air through the
grain: this removes very light
materials such as
chaff, husks, and
dust. The grain then is sieved.
The pieces smaller
than the grain
kernels are removed by passing them over a fine mesh
screen.
The larger pieces of waste are passed over a
screen that has a
mesh size larger
than the kernels.
This screening
technique can be used even when a machine is not available.
However, it requires
screens of proper mesh size. When
screens are not
available, or when a
substitute cannot be found for them, there are other,
less effective
cleaning methods.
One of the simplest
methods of
grain cleaning uses
the wind:
this method is
called winnowing.
The grain is thrown
upward in the
wind.
As it falls, the lighter
pieces -- dust,
powder, broken
grain -- are blown
aside by the
wind.
But the heavier stones and
pieces of earth fall
with the grain.
For good cleaning,
winnowing must be
done over and
over. Some grain is
always lost, and so
the method wastes
grain.
Some farmers place this
waste material where
chickens can
take the lost grain
from it.
<FIGURE 36>
Farmers also should
clean their grain each time they move it to a new
storage place.
If this cleaning is not done, dirty grain
from one place
may be mixed with
clean grain from another. Even grain
that has been
cleaned quite well
before may need cleaning again. Insects
do not need
a long time to get
into grain. Both the insects and their
dirt should be
removed before the
grain is added to grain already in the storage areas.
The farmer should
remember that cleaning is important because:
*
dirty grain deteriorates more rapidly in storage.
*
clean grain does not heat as quickly.
*
insects breed faster in dirty grain.
THE NEED FOR DRYING
If moist grain is
stored without air moving through it, the grain becomes
hot.
The grain respires more quickly and gives
off more heat and moisture.
The grain can be
damaged if the heat is too great.
*
Heat builds up more quickly in wet grain.
*
Molds form rapidly.
*
Insects multiply faster.
*
Grain can germinate (sprout) while still in storage.
It has long been
known that meat, fish, and fruit can be preserved by
drying.
Dried fish and fruit are widely used for food.
These materials
do not deteriorate
much even when stored for long times.
This is because
life processes
usually occur very slowly when there is little moisture.
This is true for
grain. Well-dried grain deteriorates
only slowly even
at fairly high temperatures.
HOW DRYING HAPPENS
In the Field
In order to dry
grain, moisture in and on its kernels must be carried
away.
As the grain stands in the field, the dry
air moving past it takes
up moisture from the
grain. This air, now moist, is then blown
away
from the grain by
the winds.
<FIGURE 37>
The drying process
is most rapid if the air does not contain much moisture
and if there is a
wind. Little drying of the grain occurs
if the air
contains a lot of
moisture, or if there is not much wind.
<FIGURE 38>
Hot air passing
through the
grain usually dries
the grain
more quickly than
cold air
does.
From the previous
section, it is easy
to see
that there are three
major
reasons for this:
1.
Hot air can hold more water than an equal amount of cold
air can.
When dry air blows through the grain, the hotter
the air, the more water it can carry
away from the grain.
2.
Water evaporates more quickly when it is warm.
Hot air
blowing past grain warms the moisture
on the surface of
the grain.
This moisture leaves the grain more quickly.
3.
Hot air heats the grain itself.
Moisture deep inside
the kernel moves through the kernel
faster at high
temperatures.
It moves to the surface of the kernel
more quickly.
When this moisture reaches the surface,
it leaves the grain and is taken up as
vapor by the
air.
After Harvest
The above facts also
apply to drying grain after it is harvested.
Air
must pass through
the grain to dry it. Moisture between
the kernels
and on their
surfaces is carried away first. The
moisture deep within
the kernels must
first come to the outside of the kernel.
Only then
can it be removed by
the flow of air. Air must be moving for
drying
to continue.
Only if new, dry air enters the grain can
the moist air
between the kernels
be replaced by air which can take up more water
from them.
This is the principle behind some drying
methods which
force cool dry air
or warm dry air through the grain to speed drying.
<FIGURE 39>
Grain drying methods
and models are presented in the next section.
It is nearly
impossible to dry any grain completely.
The last ten
percent or so of
moisture in the kernel is tightly held by the kernel.
It can be removed
only with great difficulty. Luckily,
grain stores well
with this amount of
water in it. In some cases, removal of
this last
water harms the
grain.
SAFE DRYING
TEMPERATURES
Whatever method a
farmer uses to dry his grain, he must be careful not
to let the
temperature in the drying grain get too high.
Too high a
temperature causes
the kernels of some grains to burst.
Temperatures
which are too high
(when drying maize and rice) cause breaking, cracking,
and discoloration of
the kernels. This leads to a decrease
in milling
yield and protein
quality. Maize which is used for oil
will produce
less oil.
Grain used for
baking and milling can be dried at temperatures higher
than grain to be
used for seed. Grain used for seed
should not be
heated above 40-45
[degrees] C. High temperatures can kill
the seed embryo, and
the seed will not
germinate when planted.
The following are
the highest safe temperatures for drying grain.
USE
MAXIMUM TEMPERATURE, [degrees] C
Livestock Feed
75
Food for Humans, except rice and
beans 60
Milling for Flour
60
Brewery Uses
45
Seed Grains
45
Rice for Food
45
Beans for Food
35
Note Well:
The drying temperature depends upon the use
of the grain.
Drying at lower,
rather than highest, temperatures usually gives a better
quality dry
grain. Also, as a rough rule, lower
temperatures should be
used for very moist
grain than for dryer grain. It is
better to take a
longer time, and use
a lower heat, to dry moist grain than it is to run the
risk of parching or
burning the grain.
TESTING GRAIN FOR
MOISTURE CONTENT
Grain that is too
moist will heat in storage. All stored
grain should
be examined
frequently to see if it is heating.
Heat build-up deep
within the grain is
a serious danger signal. Unfortunately,
waiting
until you can feel
the heat in the grain is waiting too long.
Various electrical
moisture testing devices are sold. They
are seldom
available when and
where they are needed. Most of them are
complicated
and expensive.
An appendix to this manual contains a
discussion
of moisture
meters. This will show you the kinds of
commercial
meters which are
available.
Extension workers should know
that
grain moisture percentages are
calculated
in the following way:
PERCENT MOISTURE =
weight of completely dry grain
100 x
total weight of
wet grain
There are several ways to
mechanically
measure the amount of
moisture in grain in order to
make this mathematical
calculation.
Unfortunately none of these
methods
are very simple or inexpensive.
Fortunately, an
experienced farmer can usually
tell if grain is dry
enough for storage. The
method used by the
farmer varies from region
to region and
depends upon the type of grain.
However, two methods
used by experienced
farmers in many
places are: (1) pressing the
kernel of grain with
the thumb nail to see how
hard it is (dry
grain is hard to press), and (2) crushing the grain
kernel between the
teeth to make sure it is hard enough (dry enough)
for storage.
Some people talk of testing to see if grain
is dry enough
by smelling it for an
"off" smell or by rattling grain kernels in a tin
can to hear if the
dull sound of wet grain has given way to a sharper
sound of dry grain.
<FIGURE 40>
The scope of this
first manual edition can not be broad enough to allow
us to add specific
drying instructions and suggestions for each type
of grain.
Future editions may be able to do this.
If your area is
more involved with
wheat, and you feel there are additional facts farmers
should know, or
there are drying methods you have found particularly
helpful and would
like to share with others around the world, send
them in!
If there are plans
for threshers and winnowers which could be made and
used effectively by
others, these also could be included in future
editions of this
manual.

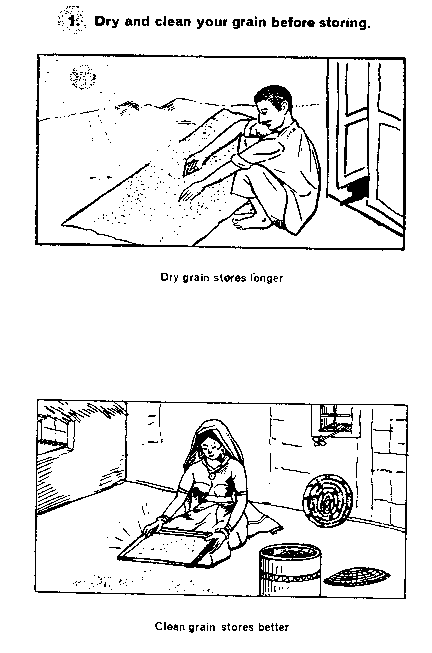

PREPARING GRAIN FOR STORAGE
Suggested Use:
A shortened version of the text.
This could easily
be illustrated and translated
for use by farmers.
*
Check the grain in the field before you harvest.
Make
sure the grain is free of insects and
disease.
*
Clean old dirt and grain from harvesting tools.
*
Remove old grain and dirt from carts or anything
used to carry the grain from the field
to the
storage place.
*
Use insecticide on all bins, sacks, and equipment.
Remember to ask your extension worker
for directions.
Always use insecticide carefully.
*
Harvest the grain carefully. Do
not break the grains.
Broken grain will not store well.
*
Keep the grain cool and dry between the time you
harvest and the time you store it.
*
Clean the grain carefully.
Insects and molds like
to live in harvested grain.
*
Sift, screen, winnow, or pick out by hand all dirt,
straw, chaff, broken pieces of grain,
rocks, and
insects.
*
These materials hold water. The
grain dries better
and faster after all the dirt is
removed.
*
Good drying is very important.
Insects and molds
like moist grain. Dry
grain is harder for them to
attack.
*
Some farmers dry grain in the field.
Insects, rodents,
and birds can attack this grain
easily. Also, this
grain can get wet if it rains.
Maize can be dried
better in the field if the stalk is broken, and the
ear hangs upside down.
*
It is better to take the grain out of the field.
You can bring the grain to a special
drying place
and dry it in the sun.
*
Keep the grain off the ground while it is drying.
Grain picks up moisture from the
ground.
*
Spread the grain on mats or flat boards to dry in
the sun.
*
Some farmers spread the grain on large trays.
The
trays are put out when the sun is
shining. The
trays are placed under a roof when it
rains.
*
Insects will leave grain that is in the sun.
Insects
do not like hot sunlight.
*
You must watch the drying grain to protect it from
rodents and birds.
*
Some farmers like to use open storage places called
cribs.
These cribs have roofs on them, and they are
built on legs.
*
These cribs work well for unshelled maize (maize that
has not been removed from the cob, or
inner part of
the ear) or for unthreshed millet,
sorghum, or rice.
Maize can dry in the crib until it is
dry enough for
shelling.
*
Some farmers build large drying machines to dry their
grains.
* The grain is put in the
dryer. A fire is lit under
the grain to warm and dry the grain.
*
Artificial or mechanical dryers can be used by groups
of farmers to dry their grain.
Your extension worker
can tell you about these dryers.
*
Test the grain when you think it is dry.
The grain
must be very dry before you put it in
storage.
*
Dry grain is hard. It is hard to
break it with your
teeth.
*
Extension workers sometimes use special tools to see
if the grain is dry.
These tools are called moisture
meters.
*
When the grain is dry, look for insects again.
Turn
the grain over with your hand.
You can see insects
crawling around.
*
Sift out the insects. Or spread
the grain in the sun.
*
Destroy the insects you take out of grain.
Burn them.
They will go right back into the grain
if you do not
burn them.
*
Put the grain into storage containers before insects
can get into it again.
*
Put each kind of grain into a separate container.
*
Do not put new grain with old grain.
Store new grain
separately.
*
Use old grain first.
*
Store rice with the outer coat on.
This coat helps
protect the grain from insects and
mold. The grain
will be good for a longer time.
5 GRAIN DRYER MODELS
This manual already
has talked about the need for drying of the grain.
Unshelled maize,
rice, millet, or sorghum often is stored in cribs for
further drying.
The ears, or heads, do not pack
tightly. Because the
cribs are open to
the wind, air moves through the stored grain and dries
it.
Even so, storage in cribs is more effective
in the dry season. The
more humid air of
the wet season may actually add moisture to the grain.
In addition, insects
and rodents can cause serious damage to unprotected
grain stored in
cribs for long periods.
Threshed grains,
particularly those with small kernels like millet, dry
very slowly during
storage. The kernels pack tightly
together. As a result,
air cannot move
easily through the grain. Such grains
can be spread
in thin layers in
the sun for drying. If possible, the
grain should be on
a screen to let air
enter the bottom. The grain should be
tumbled (stirred)
often and
carefully. The grain kernels can crack
if they are stirred too
hard.
The newer drying
methods described
here use heated air
to dry the grain.
Hot, dry air is
blown through the
grain.
These methods dry the grain
quickly and
well. Most of them require
the burning of fuel
to heat the
air.
This fact, together with
the cost of building
the machine,
often limits the
usefulness of
drying machines for
use by
small farmers.

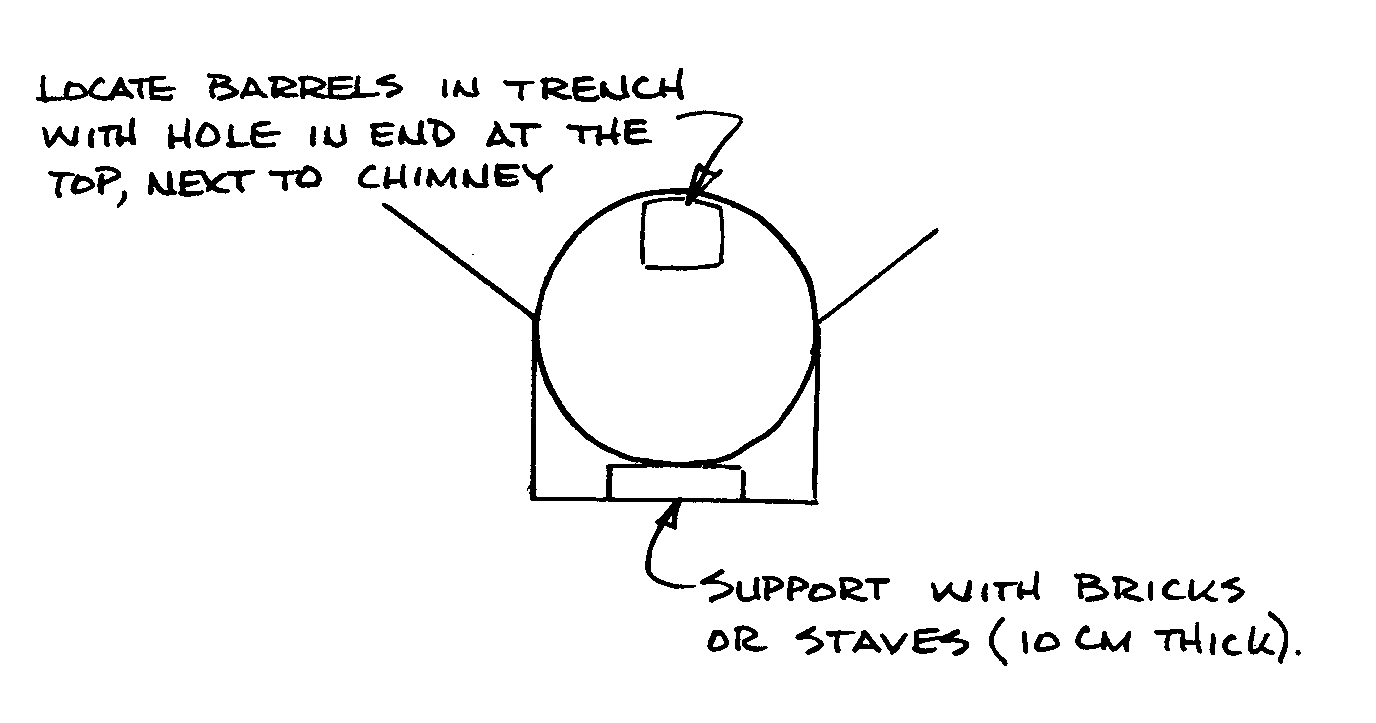

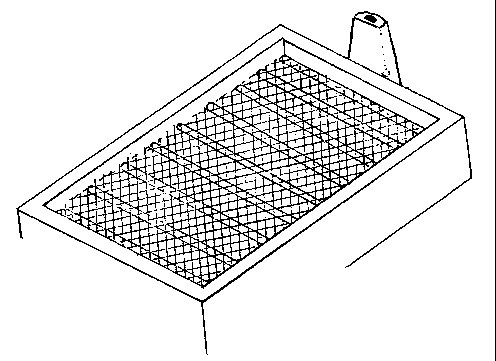

<THE PIT OIL
BARREL DRYER>
Improved Traditional
Methods
A farmer has to
think about a lot of things before he can decide which type
of drying method to
use for his crop. Here are some of the
considerations
he must keep in
mind:
*
Does his present method work? If
it does, why change it? If
it does not work, why not?
*
How much money will he have to spend for a new drying method?
*
Would he be able to maintain a new drying machine?
Could he
fix it?
Does he have enough time to operate it?
*
Would the cost of the dryer be easy for him to get back because
of better storage leading to more
grain to sell?
*
Would it be better to join a group of farmers and pay for the
cost of a dryer with a group?
Or does the farmer dry enough
grain to make use of a dryer by
himself?
You will probably be
able to help by offering alternatives.
For many farmers,
an improved method
of crib drying for maize or sun drying for smaller,
threshed grains,
would be a step easily taken. Such a
step would insure
a much better crop.
<FIGURE 41>
Here are some ideas
for sun-drying grain:
*
Spread the grain in thin layers on trays which can be carried.
Stack the trays under sheds or roofs
at night to protect the
grain from dew or from rain.
*
Make trays with fine-mesh screening for the bottom.
Support
the trays so they do not rest on the
ground. The screening
lets dust and straw fall out of the
grain. Put the trays on
top of each other under roofs or sheds
at night and when it
is raining.

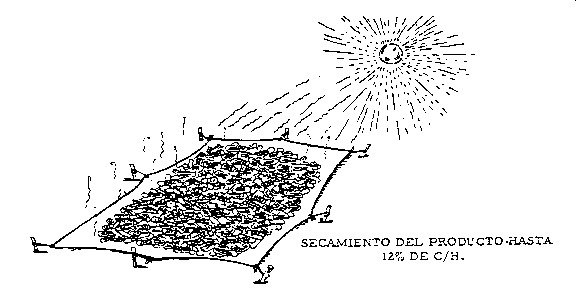

SUN DRYING USING
PLASTIC SHEETS
*
Find a plastic sheet. Or use
several plastic sheets joined
together.
You need a sheet about 10m x 3m.
The plastic should
be at least .004 gauge thick.
*
Build a mound of hard-packed earth to place the plastic on.
If you use level ground, build a dike
of earth around the area
on which the plastic will be placed to
protect the drying
grain from water.
*
Make sure there are no rocks, wood and sharp things on the
ground where the plastic will go.
The plastic tears easily.
*
Place the plastic in the prepared place.
*
Attach the narrow end of the plastic to straight poles made from
bamboo or other smooth material.
*
Put clean grain on the plastic.
Do not make the grain more than
5cm deep.
*
Stir often so the grain will dry faster.
Turning and stirring
makes sure all parts of the grain are
touched by air and sun.
*
The rake or other tool used to stir the grain must have smooth,
rounded edges.
This tool then will not damage the plastic
or
the grain.
*
As the grain dries, moisture from the grain collects on the
plastic.
After the grain has been drying for two hours, push all
the grain to one half of the plastic.
*
Let this plastic dry for 5 minutes or so.
*
Push all the grain to the other half of the plastic that is now
dry
and let this half dry for 5 minutes.
*
The plastic sheet should be aired in this way every two hours while
drying is going on.
*
Cover the grain at night. Push
all the grain to one end and fold
the plastic over as a cover.
*
Or place an extra piece of plastic over the grain.
*
Remember to put soil, boards, rocks, and heavy things on the corners
and edges of the plastic cover to keep
it from blowing off.
THE IMPROVED MAIZE DRYING AND
STORAGE CRIB
<FIGURE 42>

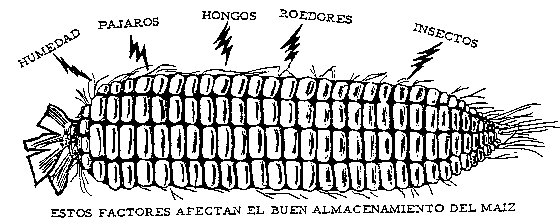

Maize holds a great
deal of moisture inside its kernels and husk.
When
maize is harvested,
the moisture content is high. It must
be much drier
before it can be put
into closed storage containers. If
maize is put into
a closed container
right after harvest, molds cause heavy losses of grain.
Drying Maize
Harvested maize must
have air passing around it to dry the kernels.
When
the kernels are
dryer, they can be shelled (taken off the cob) and stored
in airtight
containers. To dry maize before
shelling, some farmers keep
the husks on the
ears. Then they tie the husks into
bunches and hang these
bunches in
trees. Some farmers hang these bunches
on poles set into the
ground or put them
in the roofs of cooking or living shelters.
Sometimes farmers
remove the husks and pile the ears loosely in open-weave
basket granaries or
in covered crib granaries. These
containers partly
protect the grain from
rain. Storing maize this way allows air
to pass
over the grain and
dry it better. This way of storing the
maize while it
is drying helps
protect the maize from mold.
But insects remain a
big problem. They can attack maize
drying in cribs
easily.
Many farmers choose to leave the husk on the
maize. This does
provide some
protection from insect attack -- particularly in traditional
varieties of maize
where the husk is tight and fits closely over the ear.
In newer, hybrid
varieties of maize, the husk is smaller and the ear is
larger.
These varieties are more easily attacked by
insects. Maize with
the husks left on
will take longer to dry because the air cannot pass
freely over the
ear. Also, the husks are full of
moisture -- increasing
drying time and the
risk of molding.
So, a good way to
dry and store maize would:
1)
allow the maize to dry without the husks.
2)
control insect attack at the same time.
Crib storage,
already done in many countries, seemed a good method needing
only slight
improvement. Therefore, much work and
study were done to
design improvements
into crib storage to allow for both faster drying and
effective use of
insecticides. Much of the improvement
in the crib storage
method is based on
proper use of insecticides.
Insect Control in
Cribs
To reduce losses due
to insects, a number of insecticides have been
tested for open crib
storage. The maize put into the crib
must have the
husks removed so
that the insecticide can cover the whole surface of the
kernels.
Apply the
insecticide to the maize ears in layers.
Put down a layer of
ears 20-25cm
deep. Dust the layer with
insecticide. Put down another
layer of ears, and
then more insecticide. Continue until
the crib is full
When the crib is
full, put insecticide on the outside walls of the crib
to prevent insects
from entering.
The wind, rain, and
sun all can affect how long the insecticide lasts.
You can put more
insecticide on the outside of the crib every three to
four weeks.
Look at the maize in the crib every few
weeks to see if the
insecticide is still
working. The insecticide put inside the
crib will
last only four or
five months. But while it is working it
can reduce the
amount of maize
damaged by insect attack.
After four months,
check the grain moisture level. The
maize may be dry
enough to shell and
store in sacks or bins. The maize is
dry when the
kernels crack
sharply between your teeth and are not soft.
If the grain
is not dry enough,
remove all the maize and put it back into the crib
again, layer by
layer, dusting with insecticide as you go.
Faster Drying
Keep the crib no
wider than 1m. Between 60 and 100cm are
good widths for
dryer/storage
cribs. The narrow width helps maize to
dry more quickly.
Air cannot move
through wider cribs to cool the grain in the middle.
The
grain in a wider
crib will heat, and be attacked by mold and insects.
Rain which wets the
grain through open crib walls is not generally a problem.
Only the surface of
the maize on the sides gets wet, and this dries
quickly after the
rain stops. This rain causes no
increase in moisture
content of the grain
if there is sunny weather afterwards.
The following plan
is a modification of a crib designed and tested by
the Nigerian Stored
Products Research Institute and the FAO Rural
Storage Center at
IITA, Ibadan, Nigeria. The plan is for
a 2m long
crib.
It stores 800kg of maize ears (this will
give 540 kg of shelled
maize).
A crib which is 1,50m high, 0 60m wide and
1m long will store
400kg of maize ears
(yields 270kg of shelled maize).
Some General Remarks
About The Improved Maize Drying and Storage Crib
*
Use materials that are easy to find in your local area.
*
The crib will work best if it is no wider than 60-70cm.
*
A good height for the crib is 2,00-2,25m from the ground to
the roof.
There is at least 50-75cm between the bottom of the
crib and the ground.
Most rats cannot jump this high.
*
If bamboo in your area is attacked by insect borers, use
another local wood for the
legs. Make sure the wood is termite
proof.
These legs must have rat guards put on them.
*
The long sides of the crib must face the sun.
That is, they
should face the east and west.
The short sides will then face
north and south.
*
Make the crib larger by adding more sections.
Make it longer.
Do not make it wider.
Tools and Materials
This is a
guide. You can use what you have
available. The frame is
bamboo.
If bamboo is not available in your area, or
if the bamboo in
your area is
attacked by insect pests, use wood that is resistant to
termites or any
other pests. Lash it together the same
way you would
lash bamboo.
For the building
frame (all bamboo or substitute):
(a)
3 vertical supports, 3.5m long, with V-notches and lashing
slots in one end of each one
(b)
3 vertical supports, 3m long, with V-notches and lashing slots
in one end of each one
(c)
2 horizontal roof supports, 2.5m long
(d)
2 horizontal platform (floor) supports, 2
(e)
6 vertical platform supports (with V-notches in one end of each),
1.5m long
(f)
6 notched horizontal width spacers, 70cm long
(g)
25 poles, 95cm long, for the platform surface
For the wall bracing
and covering (raffia, small bamboo or other wood):
(h)
8 cross braces (optional if frame is very strong):
* 4 must be about 2.5m long
* 4 must be about 1.70M long
(i)
8 wall supports, 2.25m long
(j)
8 wall supports, 1m long
(k)
raffia or other strong slats for the wall covering.
Tie these
together into a mat.
The finished mat should be about 6m long
and 1
<FIGURE 43>

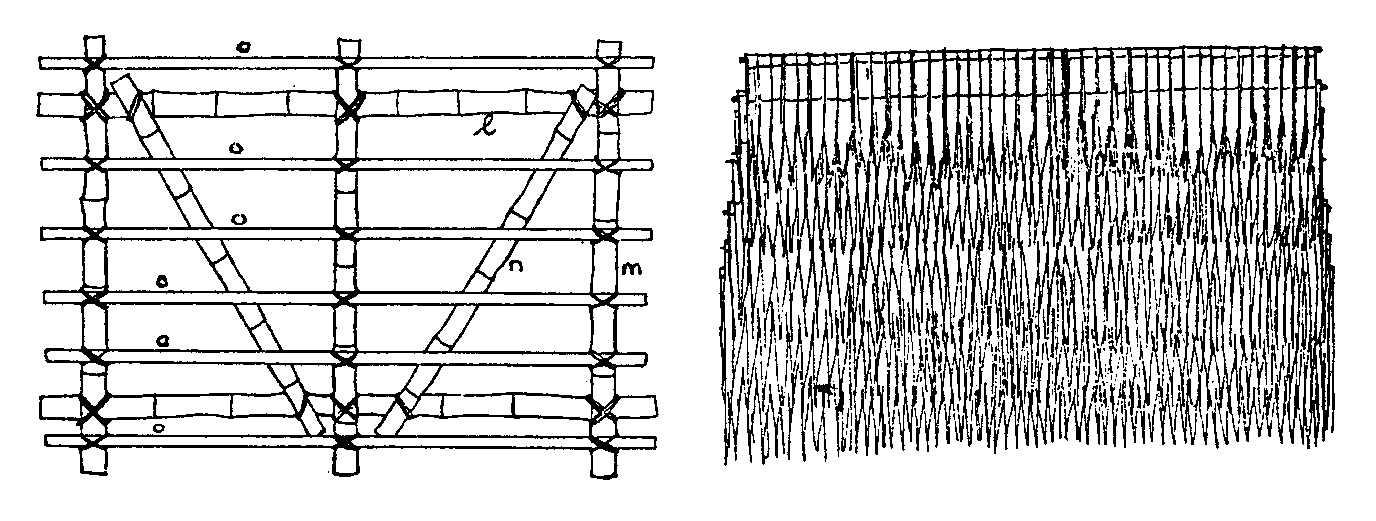

For the roof (all
bamboo or substitute, except for purlins, and roof
covering and loading
cover):
(l)
2 horizontal pieces, 3.25M long
(m)
3 cross pieces, 1m long
(n)
2 angle braces, 1m long
(o)
7 purlins, 3.25m long. Six of
these will be lashed across
the cross pieces to support the roof
covering; one may be
attached to the front loading cover.
(p)
raffia mat or grass for thatch to cover the roof, and also for
the front loading cover.
You will need a horizontal piece at
least 2.25m long to weave the
loading cover material onto -- it
need not be bamboo or of a large
diameter.
For rat guards (if
you need them):
See Section 6, Part 2 of this manual
for directions on making
rat guards (baffles).
For the lashing
material:
(q)
You will need plenty of rattan, rope or tie vine for lashing
all the wood pieces together.
<FIGURE 44>
1.
Select a site.
*
Find a good site for your storage crib.
Keep the crib away
from the fields.
This stops insects from flying to the drying
grain from the fields.
2.
Prepare your materials.
*
Collect all the materials you will need.
*
Make V-shaped notches in one end of each
of the three 3.5m vertical supports
(a),
and cut some grooves on each side just
beneath the notches to provide a hold
for
the lashing there.
Do the same on one end
of each of the three 3m vertical
supports
(b).
<FIGURE 45>
*
Make V-shaped notches in one end of
each of the six 1.5m vertical
support posts (e).
<FIGURE 46>
*
Make holes all the way through
each end of all six 70cm
horizontal spacers (f).
<FIGURE 47>
*
Organize all the pieces, or mark them with the appropriate
letters, so you can find them quickly
during construction.
3.
Make holes in the ground for the legs.
*
Mark spots for holes for the vertical supports (legs)(a) and
(b) on the ground.
Make a mark for the first hole; measure
1m and make another mark.
Measure 1m from that mark in the
same direction and make a third
mark. You should now have
3 marks in a straight line.
Each mark will be the center of
a hole.
*
Make three more marks, each 1m apart, in a line parallel to
the first line and 75cm away.
Each of the three new marks
should be directly opposite one of the
first marks and 75cm
away.
*
Dig six holes, each centered on one of the marks.
Make the
holes 50cm deep and wide enough so
that two vertical supports
will fit down into each one.
<FIGURE 48>
4.
Erect the vertical supports.
*
Lay the three 3.5m vertical
supports (a) on the ground
1m apart, with their ends
lined up.
Lash one of the
2.5m horizontal roof supports
(c) to the notched ends.
*
Lay the three 3m vertical
supports (b) on the ground
in the same way and lash
the other horizontal roof
support (c) to the notched
ends.
*
Place the two assemblies
into the holes.
<FIGURE 49>
5.
Erect the vertical platform supports.
*
Place the vertical platform
supports (e) into the holes
on the insides of the vertical
supports you have
placed in the holes.
Make
sure the V-notches are
facing upwards.
*
Tie the platform supports to
the longer supports temporarily
until the next step is
completed.
<FIGURE 50>
6.
Install the platform support framework and
make the structure
rigid.
*
Place the two horizontal
platform supports (d) in the
V-notches of the platform
supports.
*
Lash three of the notched
horizontal spacers (f) to the
vertical supports (a) and (b),
across the width of the crib.
*
Level and square the framework.
*
Fill the holes around the
vertical supports with small
stones and soil.
Tamp down
firmly.
*
Lash all joints tightly.
<FIGURE 51>
7.
Finish the platform.
*
Lash the twenty-five
95cm poles (g) next
to each other on the
horizontal platform
supports.
This forms
the platform.
<FIGURE 52>
8.
Install the cross braces.
*
If you think the frame is not
sturdy enough by itself, lash
the cross braces (h) loosely
to the vertical supports on
the outside of the crib.
*
The 2 1/2m cross braces are
paired on the long sides of
the crib, and the 1,70m cross
braces are paired on the
ends of the crib.
*
Each brace should extend from
somewhere near a top corner
to somewhere near the opposite
bottom corner.
Leave
room for a loading cover on
the higher side of the crib.
*
Make sure the frame is straight
and even.
Lash the braces
securely.
<FIGURE 53>
9.
Install the wall supports and wall covering.
*
Lash four of the 2.25m wall
supports (i) to the vertical
supports along the inside of
one of the long sides of the
crib.
Lash the remaining four
supports to the inside of the
other long side of the crib.
*
Lash four of the 1m wall supports
(j) to the vertical
supports along the inside of
one end of the crib, and four
of them along the inside of
the other end.
*
Lash the already-prepared wall
covering, 6m x 1.5m (k), to
all the wall supports on the
inside of the frame.
<FIGURE 54>

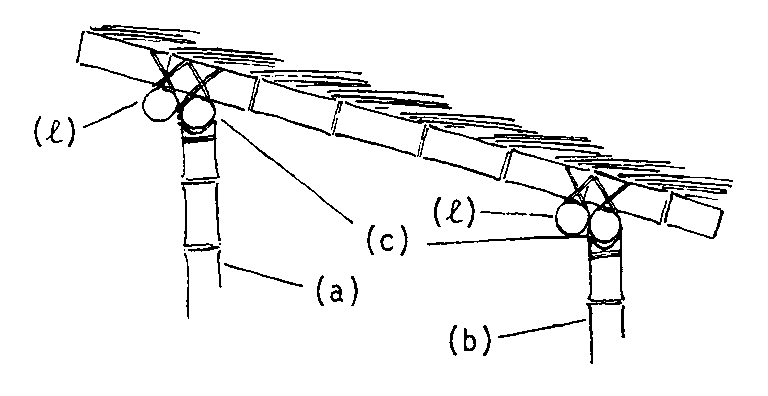

10.
Build the roof.
*
Call the high side of the crib
the front and the lower side
the back.
*
Measure the distance between the
centerlines of the front and the
back horizontal roof supports (c)
which are lashed to the tops of
the vertical supports (a) and (b).
*
Lay out the two 3.25m horizontal
roof pieces (l) on the ground so
their centerlines are the same
distance apart as the measurement
you have just made.
*
Lash the three 1m cross pieces
(m) on top of the horizontal
roof pieces, 1m apart.
When the
roof is placed on top of the frame, the
cross pieces should cross over
the ends of the vertical supports of the
frame.
<FIGURE 55>
*
Lash the two 1m angle braces (n) to the
horizontal roof members so
that they extend diagonally across the two
spaces in the roof frame.
*
Lash six 3.25m purlins (o) on top of the
three cross braces so that
they extend longways along the roof
frame. Lash the first and last
purlins near the ends of the roof cross
braces.
*
Lash raffia mat in overlapping layers to the
roof frame.
<FIGURE 56>
11.
Install the roof.
*
Place the roof on top of
the frame as shown
(looking at the end).
*
Lash the roof in place.
<FIGURE 57>
12.
Make and install a
front loafing cover.
*
Lash raffia mat to a 2.25m
long bar to form the front
loading cover.
The mat should
be made large enough to hang
down beyond the top edge of
the wall covering when the bar
is lashed in place up under
the front edge of the roof.
*
Lash the bar holding the raffia mat up under
the front horizontal
roof piece.
<FIGURE 58>
13.
The crib is ready for use.
Load the crib.
Lash down the bottom corners of the loading cover
to the frame during drying and storage.
<FIGURE 59>
NEWER DRYING METHODS
Some farmers have
more money and are more in
need of a faster,
more reliable way of drying
their crops.
Controlled drying, or drying
with a device which
creates heated air for
drying, can be very
helpful to farmers who are
ready and able to
make use of newer methods.
Used appropriately,
these drying methods can
help a farmer to:
* harvest earlier and get his
land
ready for a new crop sooner.
*
avoid grain losses to insects,
birds, and rodents during long
natural drying times.
*
store better-prepared grain, keep it in storage longer, and
take it out in better condition.
*
make more money from the sale of his grain.
<FIGURE 60>
Four different dryer
plans are presented here. Two are made
using oil
barrels and are
heated with a fire. The Philippines
Rice Dryer uses a
fan and also uses
heated air. The solar dryers are three
variations of
the same idea.
Be Sure a Dryer Will
Suit Farmers' Needs
There are several
factors which may determine the usefulness of faster
drying to farmers in
your area. It is not possible to give
guidelines
for what a farmer
could do in every case, but these are some of the basic
ones.
The Storage
Method. It will not be as useful to
build a dryer that dries
grain to a low
moisture level, and then store the grain in something
which will not keep
it this dry -- such as cribs, unsealed gourds or
baskets, sacks, most
kinds of earthen pits, or mud-walled structures
which do not have
extra protection against moisture.
Airtight storage
will make the use of
these dryers worthwhile.
Type and Condition
of Grain. Rice will crack easily in
high-temperature
drying.
Newer varieties of rice must be harvested
when they still contain
around 25% moisture;
since the husks (containing moisture themselves)
must be left on
while drying, and the rice grains will be tightly packed,
a very long time in
the dryer would be needed. In the two
oil barrel dryer
designs, heat is not
likely to flow evenly through the tightly packed
kernels:
and much rice would
be damaged by
cracking. If
fans are added to
the oil
barrel dryers to
force a more
even flow of warm
air up through
the grain, farmers
should be able
to dry rice
successfully. The
Philippines Rice
Dryer uses this
method.
It may be difficult or
impossible to dry
rice in solar
dryers.
Other grains which also
pack tightly, but
give up their
moisture more
easily, and are not
so likely to crack
and shatter,
may be safely dried
as long as
not too thick a
layer is put
into the dryer at
one time.
<RICE DRYER>
Moisture in
Grain. Drying very moist grain will
take longer. The safest
way to dry moist
grain is for a longer time at a lower temperature.
It
would be difficult
to avoid overheating portions of the drying grain
during a long period
of time if the temperature were not kept down.
It is difficult to
control the drying temperatures accurately in oil
barrel dryers
without fans and in solar dryers.
Moisture in
Air. The weather in your area will
affect how long the
grain takes to dry. In a
wet, cold climate or
season, grain will take
longer to dry than
in a dry, warm place.
Heated-air dryers
might be very useful
where drying must be
done in wet or cold
conditions which
cause farmers to lose
grain to insects and
molds during
long natural drying
times. But,
at least in the
cases of the
oil barrel and solar
dryers,
this must be weighed
against
problems caused by
relatively
long drying times in
the
dryer.
<SIMPLE OIL
BARREL DRYER>
Fuel.
What kinds of fuel are available, and how
much
does it cost?
You must know this to determine the
value of heated
drying, especially if you expect longer
drying times in a
dryer. Firewood is not always
plentiful -- or even
available -- in an area. Even if
available, it may be
costly. Maize cobs or some other
natural fuel may be
available. Farmers may have to
pay the labor costs
for gathering these fuels. Try
to be sure farmers
will not be spending more on fuel
than they will be
saving by marketing more and better
quality grain.
<FIGURE 61>
Other Important
Factors. If the grain is to be used to
seed, it should
not be heated beyond
45 [degrees] C. It will be difficult or
impossible to control
the drying of seed
grain in these dryers.
Other possible
costs, the availability of some materials, and
cultural values or
local preferences must also be taken into account.
Some Notes on the
Dryers
There are many
dryers being developed all over the world.
But much of
this research is
being carried out for use in large-scale drying operations.
This manual is
concerned with the small-scale farmer and his problems.
The drying method he
chooses must be appropriate for his situation.
The two dryers made
out of oil barrels and hand-rammed earth or mudblocks
have only one part
which may be expensive -- the oil barrels themselves --,
but the materials
are available almost everywhere. In the
Pit Oil Barrel
Dryer the barrels
are sunk into a pit. The Simple Oil
Barrel Dryer is
built entirely above
ground. They each require mostly simple
labor and
would be good
projects for a group of farmers.
<CUTAWAY OF THE
PIT OIL BARREL DRYER>
The Philippines Rice
Dryer is made from wood and spare auto parts.
A fan provides
reliable air flow and more even heating.
Oil, kerosene
or rice hulls may be
used for heating fuel, and a small gasoline or
diesel engine, or an
electric motor may be used to power the fan.
It
requires more in the
way of materials. Thus it may not be
usable by
many farmers because
of unavailability or high cost of materials.
But
the plan is included
because there are farmers who are interested in
this kind of
machine, and it does represent a relatively small-scale,
appropriate method
of drying.
The solar dryers
provide
faster drying and
require no
fuel.
By enclosing the drying
grain, they retain
the heat
of the sun better
than just
spreading the grain
out in
the sun to dry.
They require
little or no
maintenance.
Except possibly for
plastic
sheet or corrugated
roofing,
all the materials
should be
available almost
everywhere.
One of the models'
heating
capacity can be
augmented
by adding a fire and
a flue
under the grain bed.
<A MODIFIED SOLAR
DRYER>
Again it is
important to say that these dryers and drying methods are
included here to
provide good examples of drying choices farmers might
be interested
in. If a method is not quite right for
the farmers in
your area, perhaps
only a slight change will be necessary.
You may
discover you can use
ideas from one plan in another plan.
Let us know
if VITA can help
make one of these plans more useful. If
you know of
a plan for a
small-scale dryer useful to farmers which is not included
here, send it to
VITA for inclusion in the manual.
<A SIMPLE OIL
BARREL DRYER>
A SIMPLE OIL BARREL DRYER
This design is based
on material prepared in 1973 by the Institute for
Agricultural
Research at the Ahmadu Bello University in Zaria, Nigeria.
It is similar to the
Pit Oil Barrel Dryer, but it is easier to build.
It rests on the
ground so you do not need to dig any pits or trenches.
The drying grain is
placed on a screen floor above four oil barrels
fastened
together. Warm air from the fire --
which is built in the front
half of the barrel
chamber -- passes through the barrels and out the
chimney.
This warms the air around the barrels, which
rises through the
screen floor and
dries the grain.
Grain can be
harvested without waiting for any drying in the field and
during any weather
(if you build a shelter over the dryer).
Problems of
insect and rodent
damage during drying in fields or cribs are avoided.
Construction
materials are easy to find in most places.
It is better for a
group of farmers to share in the building and use of
this dryer.
Make sure there is enough fuel in your area
to operate the
dryer.
Firewood or maize cobs will work well.
Placing a fan to force
air through the
barrels will reduce the amount of fuel needed.
DO NOT USE THIS
DRYER TO DRY GRAIN KERNELS YOU WILL USE LATER FOR PLANTING.
IT GETS TOO HOT.
In this plan
mudblocks are used to make the walls.
Hand-rammed earth may
also be used without
putting it into blocks first. You may
substitute an
available local
material that will be as strong and resistant to wear and
heat, such as burned
brick. Sandcrete (cement and sand) or
concrete blocks
will crack with the
heat. If banco (earth and water) is
already used for
construction in your
area, the same high-clay-content soil will work well
for the dryer.
You may mix in cement with low-clay soil to
build earthen
walls.
This dryer is made
with four barrels. You can build one
with more or less
barrels.
If you make it too much longer you may have
trouble getting a
good draft from the
fire going through them. You should
also narrow the
width of the dryer
somewhat if it is longer, so as not to overload its
heating
capacity. You can make a shorter dryer
wider. A smaller dryer
might also be very
useful to dry smaller fruit or vegetable crops.
READ THE
INSTRUCTIONS THROUGH BEFORE YOU BEGIN
Tools and Materials
*
4 220-litre oil barrels
*
about 375 mudblocks, each measuring 15 x 20 x 25cm
* wood to make a form for
the mudblocks
*
about 2m of heavy wire, to join the barrels
*
3 strips of small-mesh screen, each about 180cm long
and a few centimeters wide, to
cover joints between barrels
*
a little cement and some sand to make mortar for sealing the
joints between the barrels
*
13 6-10cm wide logs for drying floor supports.
Cut them about
2m long, equal to the outside
width of the dryer.
*
6.5 or 7 square meters wire mesh, for the drying floor
OR
about the same area of heavy
woven mats, plus a total of 10m
of wire mesh strips about 20cm
wide
* OPTIONAL:
materials for making concrete, plus
reinforcing rods;
or heavy metal bars.
These will make reinforcing crosspieces
across the barrels in the front
and back walls of the dryer.
1.
Select and prepare a site.
*
Select a site that is well drained and can easily be made level.
*
Plan to place the dryer so the chimney will be on the downwind
side of the prevailing wind during
the season when the dryer
will be used most.
*
Build up the ground on the site a little so rainwater will not
collect around the dryer.
Make it level.
Make the raised and
level area about 6,50m x 4m.
*
Tamp the earth down firmly so it will not shift or crumble
under the finished dryer.
2.
Assemble the oil drums.
<FIGURE 62>
*
Cut both ends from three 220 litre barrels.
<FIGURE 63>
*
Cut one end from a
fourth barrel.
Cut a
hole about 20 x 20cm
across near the edge in the
other end of this barrel.
This
will make an opening into the
chimney.
*
Punch four evenly spaced holes
around the rim of each barrel
where it will join another
barrel.
*
Join the four barrels together
by tying pieces of heavy wire
through the punched holes.
Twist the ends and press them
down flat against the barrel.
<FIGURE 64>
*
Save two of the cut-off barrel
ends to use later as dampers,
one at the front entrance to
the barrels and part of the
other over top of the chimney
hole.
<FIGURE 65>
3.
Make mudblocks.
*
Make a form out of
wood to mold mudblocks
with.
One
that will make
three at a time
might be a good
size.
Make it so
that each finished
block will measure
15 x 20 x 25cm.
*
You will need about
375 mudblocks.
Let them dry
hard before using.
<FIGURE 66>
4.
Begin the dryer walls.
*
Mark the outside dimensions of the dryer on the dirt foundation
you have made.
It will be a rectangle measuring about 3,50
x 2m.
*
Call 3,50m the length of the sides and 2m the width across the
front and the back.
Make your marks so that the front of the
dryer will sit back about 2m from
the edge of the raised and
levelled earth foundation.
This will leave about 1m at the back.
Leave about 1m on each side.
<FIGURE 67>
*
Allow for variations in the actual size because of differences
in the mudblocks and spaces between
them for mortar.
*
Make a mixture of mortar out of the same material you used for the
blocks.
Add just enough water so it is not too watery.
*
Lay down the first layer of mudblocks.
Place blocks so that 20cm
is the thickness of the walls and
15cm is the vertical dimension.
*
Mortar between the blocks. Allow
about lcm between blocks for a
good mortar joint.
*
It is important to make the right distance between the front and
the back walls.
Since the assembled oil barrels will be
about
3,45m long, make the distance
between the inside edges of the front
and back walls about 3,10m.
This will allow the ends of the barrels
to rest firmly on the first layer
of blocks at each end. Later
they will be enclosed around the
sides by the finished end walls,
making a good seal against smoke
from the fire leaking around the
barrels and passing up through the
drying grain.
*
The three spaces along each side wall will be air vents.
When the
dryer is in operation cool air will
be drawn in through them,
warmed, and then rise through the
grain to dry it.
*
Make the air vents each about 15cm across.
If you have trouble
getting a 3,10m distance between
the inside edges of the front
and back walls, you may change the
size of the vents a little.
5.
Place the barrels.
*
Place six free-standing blocks down the middle of the dryer.
These will support the
barrels. Getting the barrels up off the
ground helps air to move around
them and also reduces the chance
of their rusting.
*
Put a layer of mortar on each of the blocks down the middle of the
dryer and on the center part of the
front and back walls where the
barrel ends will touch.
<APPROXIMATE
SPACING OF BLOCKS TO SUPPORT BARRELS>
* Lay the barrels in
place on the mortar and brace them temporarily
with sticks if they want to
roll. Make the chimney end of the
barrel assembly flush with the
outside edge of the back wall.
This should cause the front end of
the barrel assembly to lie most
of the way across the front
wall. Make sure the hole that will
let smoke into the chimney is on
the top of the end.
*
Seal the joints between the barrels.
Place a strip of screen
around each one and plaster with a
mixture of mortar, one part
cement to eight parts sand, and
water.
Test the seals at
the joints. Light a smoky fire in the
first
or second barrel
from the front and see if smoke escapes anywhere
except the hole for
the chimney. Don't let it burn long
enough to
dry the mortar on
the joints. Keep the mortar damp until
it is
hard.
<FIGURE 68>
6.
Continue the walls.
*
Lay down five more layers of mudblocks.
*
Lay the blocks so that, as much as possible, each block crosses
over a joint between blocks in the
layer below. This will make
the walls stronger.
*
The air vents are only as high as the very first layer of blocks
(15cm).
Span over top of each vent with one full-size block.
*
To make good continuous layers of blocks you will have to cut
some blocks into smaller sizes.
*
Bring the blocks in the front and back walls as close as you
can to the sides of the barrels.
Fill in the spaces completely
with mortar so there will be no air
leaks. For added strength
you can mix some cement with this
mortar.
*
If you think the ends of the barrels are not strong enough to
support three or four layers of blocks
above them, then make
crosspieces out of reinforced concrete
or use iron bars to put
across the top of the barrel ends.
Make them longer than the
width of the barrels.
Mortar them into place in the wall, and
make the tops even with the top
surfaces of the walls.
<FIGURE 69>
7.
Make a drying floor screen.
*
Prepare screen to the right size for the drying floor.
Assemble
whatever size sections you have by
overlapping about 5-10cm and
fastening together with thin wire.
*
The overall size should be about 3,30 x 1,80m.
This will allow
about 10cm on each side to be embedded
into the walls.
*
Check the size of the screen by stretching it lightly across
the top of the dryer.
If it overhangs beyond the outside edge
of any wall when it is centered, trim
it back. If it is too
small, add some screen where it is
needed. When you are
satisfied, set the screen aside.
NOTE:
Small-mesh screen is best. But chicken
wire can be
used.
Place straw mats over chicken wire, or other
large-hole screen, so grain will
not fall through
the holes.
Some kinds of woven mats are very
strong. These can
be used in place of screen.
In some places, screen
may be costly.
If you use mats in place of screen,
it would be best to prepare some
strips of metal
screen to embed around the insides
of the walls and
fasten mats to.
Then, if the mats later rot or weaken
around the edges (or anywhere),
there will be
something to fasten new mats to.
8.
Place the drying floor supports and screen;
finish the walls.
*
Put a layer of mortar
down on the top of each
side wall.
<FIGURE 70>
*
Lay the thirteen logs
down on the mortar,
from one side wall to
the other.
Space them
evenly.
You should
leave about 15cm between
each one and between
the log on each end and
the end wall next to it.
The 15cm may be a little
different; it will depend
on the size of the logs.
The log ends should come to
the outside edge of each side
wall.
<FIGURE 71>
*
Fill the spaces between the logs with mortar up to the tops
of the logs.
*
Build up the front and back walls and the corners of the
dryer to the same height as the tops of
the logs.
*
While the mortar is still wet on the tops of the four walls,
lay the screen you have made in place
on top of the logs.
Center it so about the same width
extends over each wall.
Stretch any wrinkles or kinks out of
it.
*
Place a thick layer of mortar over the screen the width of
the wall so that it fills the holes in
the screen and gives
a good base to lay mudblocks on.
Lay mudblocks in the usual
way.
*
Lay down two layers of mudblocks above the screen.
This will
make a drying chamber a little more
than 30cm deep, which should
be plenty for the most bulky grains,
such as unshelled maize.
*
Smooth any rough spots on the tops of the walls, so no bumps or
loose pieces will be knocked into the
dryer when it is in use.
9.
Build a chimney.
*
Build a chimney
up against the back
wall of the dryer.
Center it on the smoke
outlet hole cut in the
end of the back barrel.
<FIGURE 72>
*
You can use mudblocks the
same size as in the dryer
walls, and mortar.
Position
the 20cm edges vertically.
This
will give about a 12 x 12cm smokehole
in the center, which is large enough to
allow easy smoke escape,
but small enough to keep down heat loss
from the barrels.
*
Leave a space in the chimney wall against the hole in the barrel
end.
It will start after two layers of blocks and be about two
layers high.
Fill in irregular-size spaces in the brickwork with
cut blocks or mortar.
Center a full-size block over top of the
space you have made.
Continue laying blocks until the chimney
rises at least 1/2 meter above the tops
of the dryer walls.
This will keep smoke out of the drying
grain.
*
Make sure the chimney is sealed and free of cracks, so there is
only one way for smoke to go:
through the hole in the barrel end
and out the top of the chimney hole.
INSTRUCTIONS FOR USING THE OIL
BARREL DRYERS
<PIT BARREL DRYER
AND SIMPLE BARREL DRYER>
1.
A shelter over the dryer will protect it and
drying grain from rains.
Build an open-sided one to overhang the
dryer at least 1/2m on each
side, and more on one side if you wish to
have room for storing fuel,
a work area, etc.
2.
Gather dry wood, maize cobs or other fuel
before drying begins.
3.
Build the fire in the first barrel or
mid-way into the second barrel.
4.
Prop one of the cut-off barrel tops against
the front opening into
the barrels on a block or a rock to adjust
a good draft for the fire.
A piece of a barrel top can also be placed
part-way over the top of
the chimney to give you more control of
the draft.
5.
Watch and control the fire at all times
during drying. Do not dry
with too large a fire:
you may kill or scorch the grain.
A medium
size fire will give the best distribution
of heat.
6.
If you have trouble getting enough heat, in
the Simple Dryer you may
try partly covering the side vents to get
a better draft up around
the barrels.
7.
You can modify the dryers by installing a
fan or fans to push a
steady flow of air up around the barrels
and through the drying
grain.
The resulting larger volume of less-hot air will dry the
grain faster and with little danger of
overheating.
8.
The dryers will take some time to reach
operating temperature
while the walls are heating.
Continue drying operations day and
night to make best use of the heat built
up in the dryer. Load
it with a fresh batch as soon as the one
before is dry.
9.
Limit the drying temperature for food grains
to 50-55 [degrees] C. The
bottom layer of grain should not be too
hot to hold in your bare
hands.
Grains for livestock feed may be dried at higher temperatures.
Do not dry rice, beans or any grain to be
used for seed in these
dryers -- unless you install fans, and
even then proceed cautiously.
These grains must not be heated to more
than 45 [degrees] C.
10.
Do not stir the drying grain.
Grain in the top layers receives
moisture passed up from the warmer grain
at the bottom, and gradually
releases it as drying is completed.
If you stir these wetter kernels
down again, they will re-wet the drier
kernels that got stirred up
to
the top -- and drying will take longer.
Stir only to release
the heat if overheating occurs.
11.
Dry grain until the moisture content is
about 12%. Grain is dry
when a kernel is hard and breaks between
your teeth with a sharp
crack.
12.
Load small grain such as millet and sorghum
in a layer 5-8cm deep.
Shelled maize and other grains may be
loaded up to 10cm, groundnuts
up to 20cm, and maize on the cobs up to
30cm.
13.
Maize may take one to two days to dry.
14.
Do not let dirt build up in the dryer.
Do not let the air vents that
let air up around the barrels get
clogged. Keep the area clean.
15.
Check for rust holes in the barrels and for
cracks in the joints.
Replace badly rusted barrels and re-seal
cracked joints. Smoke leaking
into the drying grain will discolor it
and change its taste and smell.
16.
If you need to get up on the dryer floor
while loading or unloading
grain, avoid tearing the screen or mats
-- do not stand in the spaces
between the log supports.
16.
If one of the logs supporting the screen in
the Simple Barrel Dryer
becomes weak or rotted, you will be able
to replace it by chipping
some of the mortar away from each end,
and pulling or knocking it
out.
Slide in a new log and mortar the spaces around the ends.
THE PIT OIL BARREL
DRYER
This dryer is based
on a plan prepared in 1974 by American Peace Corps
Volunteers in Benin,
West Africa. It is called the Oil
Barrel Dryer
simply because it is
made from oil barrels. It actually has
received
different names
depending upon the country where it was used.
The
first oil barrel
dryer was built in Samoa to dry coconut meat.
Since
then, this dryer has
been built and tested in a number of countries,
including Nigeria
and Benin. The dryer also is known as
the Low Cost
Bush Dryer and the
Brooks Dryer.
Proven advantages of
the Oil Barrel Dryer:
*
It is useful in areas where grain must be harvested in
rainy weather.
*
Maize on the cob can be dried without long drying in cribs
and use of contact insecticides.
*
Construction materials are easy to find in most places.
*
Farmers can build the dryer with little
assistance or supervision.
*
It dries a lot of grain in a short time.
*
Grain can be harvested earlier.
Because there is less
drying time in the field, there
is less danger of insect
and rodent damage.
Possible
disadvantages (depending upon area or situation):
*
It is a better dryer for a group of farmers than it is for
one farmer.
One farmer would not need it very much
during
a year.
Sharing by a group of farmers means more use
and
less expense to each farmer in
building.
*
The fuel used in this dryer is often firewood; sometimes
maize cobs also are burned.
Firewood is becoming harder
to get and more expensive in many places.
*
There is no fan included in this plan to force air through
the heating chamber and the
grain bed. Small gas motors
needed to drive fans often are
very expensive.
*
It should not be used for grain which will be used for
planting.
*
It would be worthwhile to find other economical natural
fuels (like maize cobs).
*
Banco construction (hand-rammed earth) works only where
there is a high clay content in
the soil.
Fans placed to drive
the warmed air around the outside of the barrels up
through the drying
grain would increase the efficiency of the dryer.
It
will be necessary to
find a suitable power source for the fans.
In areas
where there are many
small motor bikes, it might be possible to construct
a power drive made
from a motor bike which permits temporary hook-up and
easy detachment of
the bike as a power source.
The dryer is made of
hand-rammed earth, known in different areas as banco,
terre de barre,
adobe, etc. The maize or other grain is
placed on a
screened drying
floor. This floor is placed above a
firebox made of three
220 litre metal oil
drums joined together end to end.
You may substitute
an available local material that will be as strong and
resistant to wear
and heat as the banco, such as burned brick.
Sandcrete
(cement and sand) or
concrete blocks will crack with the heat.
If
banco is already
used for construction in your area, the same high-clay
content soil will
work well for the dryer. You may mix in
cement with
low-clay soil to
allow you to build the earthen walls.
<FIGURE 73>
READ THE
INSTRUCTIONS THROUGH BEFORE YOU BEGIN.
Tools and Materials
* 3 oil barrels, 220
litres each
*
[9m.sup.2] chicken wire or other screen, or a combination of
screen and woven mats
*
Iron or steel "re-rod" (reinforcing armature) for lintels.
6mm diameter, 6m long
*
Materials for concrete: 25kg
cement
1/2
barrel sand
1/4
barrel gravel
*
Heavy wire, about 2m
*
Thin wire, about 15m
*
10 logs, 8-10cm diameter; 2, 15m long
*
2 strips of small mesh screen, each about 180cm
long, and a few cm wide.
*
Digging tools
1.
Select a site.
*
Find a place for the dryer which is high and well-drained.
If you dig too near a tree, roots will get in your way and
you
may damage the tree.
If you are in a swampy or drainage area,
water will get into the dryer and
wear away the walls.
2.
Make 2 lintels.
*
The lintels are concrete horizontal slabs which will support
the weight of the walls over the
barrels.
*
Make two forms out of boards or bricks.
Line them with paper.
The forms should each make a
finished lintel which measures
120cm x 30cm x 8cm.
*
Cut the re-rod into 6 equal pieces each measuring 1m long.
*
Mix concrete in this proportion:
1 part cement
2
parts sand
3
parts gravel.
*
Mix sand and cement thoroughly first, then mix in gravel.
Then
add just enough water to make the
concrete thick and smooth,
but not watery.
*
Pour concrete into the forms up to a level of 4cm and tamp
firmly.
*
Lay 3 pieces of 1m re-rod on top of the 4cm of concrete in
each form.
Space them evenly, with the outside pieces about
3cm from the edge.
*
Finish pouring concrete into the forms.
Tamp firmly and level
off the top surfaces.
*
Cover them and keep them out of the sun or cover with grass.
Keep them damp for about 7 days by
sprinkling three times
a day.
This slow drying cures the concrete to its greatest
strength.
3.
Stake out the drying chamber and stoking
pit.
*
Stake out the drying chamber, as shown, on the site you have chosen.
It will be 2,80m x 3m.
*
Make sure the dryer chimney is staked out downwind of the
prevailing wind during the season when
the dryer will be used
most.
This is important -- it keeps the smoke from blowing
back into the drying grain.
*
Stake out the stoking pit against the upwind 2,80m side of the
drying area.
Make the stoking pit 2m x 2,lm.
One of the 2,lm
sides should be right next to the
upwind 2,8m side of the drying
chamber area.
<FIGURE 74>
4.
Dig top soil out of the staked areas.
*
Dig the staked out areas to a depth where you come to hardpacked
earth that will make a good
foundation. We will use
30cm in this plan.
Pile all top soil to one side so it will
not get mixed with the banco when it is
later wetted and used
to construct the walls.
<FIGURE 75>
5.
Dig a trench in the center of the staked out
area.
*
Dig a trench centered in the middle of the drying area 70cm
wide and 140cm deep -- from ground
level. It should extend
4.80cm from the chimney end of the
drying area. This will
leave 20cm un-dug at the opposite end
for a retaining wall
for the stoking pit.
*
Keep the dirt you remove separate from the top soil you
removed before.
<FIGURE 76>
<FIGURE 77>
6.
Make cut-outs for the lintels.
*
Mark points at 2,70m and 3m from the chimney end on both sides
of the trench.
*
Remove the soil between these marks, and extending from the edge
of the trench to a distance 30cm
back. Dig it down 40cm.
This
will place the bottom surface 70cm up
from the trench floor.
*
Make two more slots up against the chimney end.
They should
be 30cm wide, 30cm long and dug down
35cm, or until the bottom
of the slot is 75cm up from the trench
floor.
<FIGURE 78>
7.
Make cut-outs for the chimney.
*
The chimney hole should be dug into the soil at the back wall
of the drying area.
Centered at the end of the drying area,
dig out an area 30cm wide, which
extends back 30cm beyond the
drying area to a depth of 30cm below
the ground level.
*
Also centered at this end of the drying area, dig another area
15cm wide, which extends 15cm
back. This channel will extend
below the hole just completed until it
is 50cm from the trench
floor.
<FIGURE 79>
8.
Place the lintels.
*
Lay a 5cm layer of banco in each of the four lintel slots.
Lower the lintels into place.
Make sure they are level,
and square with the side walls of the
dryer.
<FIGURE 80>
9.
Build the dryer walls.
*
Make the front and back walls -- over the lintels -- 30cm thick.
*
Build the side walls up from the floor of the original 30cm deep
pit that you have dug out.
Make them 45cm thick until they
reach a height of 90cm above the base
of the front lintel. At
this point reduce their thickness to
30cm, leaving a 15cm wide
ledge on the inside of each side
wall. This ledge will support
logs for the drying floor.
*
The height you may build the walls in one day will depend on
the quality and consistency of the
banco.
*
Before the walls are too high, remove some of the dirt between
each side of the oil barrel trench and
the side walls. Make
a slope on each side of about 45 [degrees] starting at the inside edge
of the base of each side wall and
extending down to meet the
sides of the barrel trench about 40cm
above the floor of the
trench.
*
Embed a strip of chicken wire, or other wire mesh you have chosen
to use, into each of the walls, 10cm
above the 15cm ledge you
have made.
Each of the strips is 20cm wide and is as long as the
wall it is placed in.
10cm of the wire should stick out flat
into the drying area.
Later these strips will attach to the drying
floor screen.
Continue the front,
back and side walls until they rise 40cm
above the wire
strips. The top of the finished dryer
walls
will be 75cm above
ground level.
<FIGURE 81>
<FIGURE 82>
10.
Build a retaining wall around the stoking
pit.
*
The retaining wall protects against erosion and will keep
dirt and trash from falling into the
pit.
*
Build the retaining wall up from the floor of the original
30cm deep pit that you have dug
out. Build it on three sides
of the stoking pit area.
The fourth side is spanned by the
front wall of the drying area.
*
Make it 20cm thick. The front
wall of
the stoking pit will fit exactly on
the 20cm ledge you left at the front
end of the 140cm deep trench that
extends down the center of the dryer
and stoking pit.
<FIGURE 83>
*
Build all three sides 50cm up from
their base.
This will bring them
20cm above ground level.
11.
Build the chimney.
*
Build the chimney walls out of
banco up from the bottom of the
larger, top hole you have dug
out at the end of the dryer.
The inside faces of the chimney
walls should be flush with the
sides of the lower, smaller
hole that is dug into the
bottom of the top hole.
<FIGURE 84>
*
Extend the chimney 20cm higher
than the top of the back dryer
wall.
As you build upwards,
gradually narrow the inside
passage of the chimney until
it measures about 10cm x 10cm
at the top.
This will help
reduce heat loss.
12.
Finish the stoking pit.
<FIGURE 85>
*
You may excavate any dirt that is left in the stoking pit
so that the dirt walls in the front
and opposite the stairs
are flush with the inside surfaces of
the retaining wall which
rests on them.
*
Cut stairs in the dirt next to the stoking pit.
Make four equal
steps each 30cm high and 40cm across.
*
Leave a ledge 30cm thick between the lowest step and the front
dryer wall, to help brace the dryer
wall.
13.
Assemble and place the firebox barrels.
*
Cut both ends from two 220 litre barrels.
*
Cut one end from a third barrel.
Cut a hole 20-30cm across
near the edge of the other end of this
barrel. This will be
placed up against the opening at the
bottom of the chimney.
*
Punch four evenly spaced holes around the rim of each barrel
where it will join another barrel.
*
Join the three barrels together by tying pieces of heavy wire
through the punched holes.
*
Locate the barrel assembly in the trench with the small hole in
the end of the third barrel placed up
against the bottom
opening of the chimney.
*
Support the barrels on bricks about 10cm above the bottom of
the trench.
Incline them slightly upwards towards the chimney
for easier smoke escape.
This will allow air to circulate all
around the barrels and will also
prevent rusting.
<FIGURE 86>
<FIGURE 87>
*
Seal the joints between the barrels by placing a strip of
screening around them and plastering
with a mixture of mortar
(1 part cement to 8 parts sand).
*
Close the trench around the barrel assembly ends under the lintels
with banco.
Make sure you seal completely around the barrel at
the chimney end to prevent any smoke
"backflow". Close the
front end of the barrel assembly only
around the top of the
barrel to let cool air enter the
drying chamber -- this cool
air is warmed and will rise up through
the drying floor and
grain.
<FIGURE 88>
<FIGURE 89>
*
Test the seals at the joints.
Light a smoky fire and see if
smoke escapes into the drying
chamber. Do not let it burn long
enough to dry the mortar on the
joints. Keep the mortar damp
until it is hard.
14.
Assemble the drying floor supports.
*
Use 10 logs of solid wood. The
logs should be 8-10cm in
diameter and 2.15m long.
*
Space the logs evenly across the drying chamber from one end
to the other.
The log ends will rest on the 15cm ledges in
the side walls.
Resting the logs on the ledges instead of
fixing them in place means they can be
replaced more easily
if they weaken.
<FIGURE 90>
15.
Place and fasten screening on top of the log
supports.
*
Stretch screening across the logs and attach it to the 10cm
of wire mesh sticking out from each
wall. Make the
screening longer than the inside length
of the chamber because
the weight of grain will make the
screen sag between the logs.
Overlap all sections 5 or 10cm and
fasten together with thin
wire.
*
Small mesh screen is best. But
chicken wire can be used.
Place straw mats over chicken wire, or other large-hole screen,
to keep grain from falling through the
holes. Some kinds of
woven mats are very strong.
These can be used in place of
screening.
Fasten woven mats to wire mesh strips embedded
in the walls the same as you would
metal screen.
<FIGURE 91>
<FIGURE 92>
PHILIPPINES RICE DRYER
Scientists working
in the Philippines and other rice-growing countries have
discovered new kinds
of rice seed which grow more quickly.
This means the
crop is ready for
harvest sooner; often a farmer can plant and harvest two
crops in the time it
used to take for one crop.
However, because the
growing time is shorter, the rice is ready for harvest
during the rainy
season. Before, the rice would not be
ready until the rains
were finished.
The farmer must harvest, but he cannot dry
his grain outside
in the sun.
The problem he faces is simple, and it is a
problem for
farmers all over the
world who must harvest during wet or humid times:
how to get the grain
dry before it is ruined by insects and molds.
Scientists working
at the University of the Philippines and the International
Rice Research
Institute in Manila, Philippines, have come up with answers.
They have designed
two versions of a dryer model they feel is relatively
inexpensive, simple
to make, easy to operate and maintain.
We call it
here the Philippines
Rice Dryer. Each version of this dryer
will be discussed
separately.
There are advantages
and disadvantages to the use of this dryer by small
farmers.
Advantages are:
*
It can be used in the rainy season.
*
It uses less fuel than the oil barrel dryer because the
fan forces air through the grain and
decreases drying
time.
Disadvantages:
*
It requires construction using relatively sophisticated
materials, tools, and skilled labor.
*
It burns fuel which can be costly.
*
It requires finding and paying for special machinery.
*
It is practical only for wealthier farmers or a group
of farmers.
<LOS BANOS RICE
DRYER>
The first rice dryer
is from the Grain Processing Program of the Department
of Agricultural
Engineering at Los Banos, Philippines.
It has three main
parts:
a bin which holds the grain (placed on sheet
metal with holes) over
a container of hot
air (plenum); a fan to force air from the plenum through
the grain; and a
burner to heat the drying air.
A brief description
of the major parts of the Philippines Rice Dryer:
Grain holding bin
*
Floor area is 1.8m x 3.6m.
*
2cm plywood.
*
5cm x 5cm lumber.
*
Perforated sheet metal (sheet metal with holes).
Blower
*
58cm fan adapted from truck radiator fan.
*
Pushes 8.5 cubic meters per minute of air against a total
pressure of 2.5cm water column.
*
Size of the blower is chosen to fit the size of the grain
bin.
*
No stirring is necessary.
*
Mount fan with flange bearings, sheet metal housing.
Reinforce with angle bars.
Engine
*
5 hp gasoline or diesel engine.
*
V-belt and pulley.
*
A power tiller which has an 8 hp engine can be used.
Burner
*
43 [degrees] C recommended temperature so as not to damage milling
quality.
*
Developed direct flame kerosene burner.
Consists of 3-part
iron casing, needle valve between
burner and housing, and
a double shell sheet metal
housing. Uses 1.5 litres of fuel
each hour.
Other items
*
V-tube manometer to read air pressure at plenum and to
set engine throttle.
*
Dial thermometer to show drying air temperature.
A. Kerosene Burner
B.
Fan and Engine
C.
Grain Bin
D.
Plenum
E.
Perforated Metal Floor
<FIGURE 93>
Notes on Operation
of the Dryer
*
It takes 2 men an hour to assemble the dryer.
This is the final
putting together of the pieces.
This is the time it takes if
the grain bin is already made and
all the parts are ready to
assemble.
*
The dryer must be used under a shed to protect it and the grain
from rain.
* The bin holds about
1700kg.
*
The manometer is a guide to engine speed: a 2.5cm displacement
of the water column shows the engine
setting is correct.
*
The temperature of the air for drying is adjusted by controlling
the flame through the needle valve and by adjusting
the distance between the burner
housing and the fan intake.
*
Drying continues until the top layer of grain is at 14%
moisture.
(It will take about 8 hours of steady drying to
bring moisture down from 26% to 14
or 13%.)
For detailed
technical bulletins describing construction and use of the
Philippines Rice
Dryer contact:
The Project Director
Training of Technicians for Grain Industries
Department of Agricultural
Engineering
University of the Philippines at Los
Banos
Laguna, Philippines
<IRRI BATCH
DRYER>
The IRRI Batch Dryer
is different from the early University of the Philippines
model in 2 important
ways:
1.
It can use a self-feeding rice hull burner instead of gas
or kerosene.
This burner uses 3-4kgs of rice hulls per
hour
or 25kg per ton of rice dried.
One ton of rice contains 200kg
of rice hulls, so there are plenty
of hulls to feed the burner.
In other words, one ton of paddy
produces enough hulls to dry
that same ton of rice kernels.
2.
The fan used is a 47cm diameter vane-axial type rather than
varying sizes and models of truck
radiator plans. The use of
a standard fan allows the operator
to fix standard drying times.
Other notes on the
IRRI Batch Dryer
*
Drying capacity is 1 metric ton.
It can dry this amount of
paddy rice in 4-6 hours depending
upon the initial moisture
content of the grain.
*
The oil burner uses a 3 hp gasoline engine (a 2 hp electric
motor can be added to drive the
blower). A kerosene burner
is installed in the air duct.
*
The rice hull furnace has a steel frame and is lined with
fire bricks.
It consists of a combustion chamber and an
ash trap.
*
Either heating arrangement can raise the drying air temperature
from 29 to 43 [degrees] C at an air
flow rate of 30-35 cubic meters
of air/min/[m.sup.3] of grain.
*
Fuel consumption for the oil burner is 0.75 litres per hour
for the gasoline engine and 2.0
litres per hour for the
kerosene burner.
*
The rice hull furnace burns 3 to 4kg per hour of rice hulls.
This dryer, like the Los Banos Dryer, may be
hard to put together: in
some areas the materials may be expensive; in
other places the equipment
is hard to find.
These facts make it hard for many small farmers to use
such a dryer.
A group of farmers, however, would be more likely to be
able to use such a dryer cooperatively and
profitably. And the dryer can
be manufactured locally.
For more information and detailed engineering
drawings, contact:
Agricultural Engineering Department
The International Rice Research
Institute
P. 0. Box 933
Manila, Philippines
SOLAR DRYERS
PART ONE:
CONSTRUCTION
INTRODUCTION
The following plans
are based upon a construction manual written by James
McDowell as a result
of his experiences at the Caribbean Food and Nutrition
Institute in
Trinidad. VITA technical artist George
C. Clark has
provided added
illustrations, as well as a simplification of the building
procedure of the
Model #1 dryer.
McDowell's plans in
turn were developed from the ideas and principles
of Dr. J. Lawand and
associates of the Brace Research Institute, McGill
University, Quebec,
Canada. Now with UNICEF in Kenya,
McDowell has used
the dryer to dry
grain from 25% to under 12% moisture in one day or less.
Solar Dryers have
several possible advantages
*
There are no fuel costs.
*
Sun drying time is reduced because the heat of the sun is
made stronger by covering the drying
grain with a double
layer of clear plastic film.
*
They can be used to dry other crops -- copra, cassava,
fruits, vegetables.
There can be
disadvantages also
*
Temperatures in the dryer may build up to 65-80 [degrees] C.
This
means that grains such as rice, which
crack at temperatures
above 50 [degrees] C, or seed grains
(which can be dried at
temperatures no higher than 40-45
[degrees] C) can be damaged. A
farmer has to watch the grain
carefully, and, if no
thermometer is available, will have to
learn by trial
and error.
*
Dryers are most useful only at certain hours of the day
and would be of limited use during
long periods of
rainfall or very cloudy weather.
NOTES ON THE SOLAR
DRYER MODELS
The dryer models
here were designed and tested for drying cereal grains,
root crops, fruits,
and vegetables. The dryer holds 8 to
11kg for each
square meter of
drying floor. Dryers of the size
presented here will dry
18-24kg each
day. If a farmer wants to dry more
grain, he will have to
make a larger dryer
or build several dryers.
Instructions and
sketches for three versions of a Solar dryer are given
in the following
pages. These dryers can be made from
whatever materials
are most available
locally. The dimensions given here are
for general
guidance.
You can change the length, width, or depth
of these dryers
without affecting
their efficiency.
The sketches for
Models 1 and 2 are based on a useful, practical working
size of 2m in
length, 1m in width, and 23-30cm overall depth.
But changes
in area can be made
to suit local conditions, and dimensions of materials
available.
IMPORTANT:
The only dimension which should be followed as
closely as possible
is the thickness of insulation on the Model 1 box-type
dryer.
Where wood shavings, wood wool, dried grass,
leaves, or similar
material are being
used, a minimum thickness of 5cm should be used.
Also,
the internal depth
of Models 1 and 2 should not be less than 15cm.
MODEL # 1 SOLAR DRYER
Description
This model consists
of an outer box and an inner box. The
inner box
is at least 10cm less
in length and width, and at least 5cm less in depth
than the outer
box. The space between the boxes is
packed with suitable
insulating material.
Lower air holes are
drilled through the bottom of the boxes (and through
spacer boards fitted
in the insulation space for this purpose).
Slots
are cut in the upper
edges of the sides of the box to provide upper air
outlets.
The dryer is supported about 15cm above the
ground on four legs
(which also form the
main corner members for the box)
<FIGURE 94>
READ THE INSTRUCTIONS
THROUGH BEFORE YOU BEGIN
Tools and Materials
*
Hammer, screwdriver, tri-square, saw, brace, and 2.5cm
wood drill, 2cm wood chisel.
*
Wooden planking or plywood for Sides, ends, and bottom
of boxes. Use wood
from old packing cases if it is
available.
*
Lengths of timber:
4 pieces 5 x 10cm for legs
4 pieces 5 x 5 cm for legs
13 pieces 5 x 5 cm for the side,
end, and bottom
spacer strips.
*
Insulating material: wood wool,
dried grass or leaves,
coir fibre, etc.
*
Nails and screwnails of appropriate size.
*
Flat or matt-black paint or other suitable black staining
material, e.g., charcoal, that is not
shiny or glossy.
Build the Inner Box
*
Check all measurements and markings on the wood before cutting.
*
Cut side and end pieces. These
can be one piece of wood, or
you can join narrower planks together
to make a box about the
right size.
*
Put the pieces together. Make
sure the nails are completely
hammered into the wood.
<FIGURE 95>
*
Cut and nail the leg pieces to the corners as shown.
<FIGURE 96>
<FIGURE 97>
<FIGURE 98>
<FIGURE 99>
<FIGURE 100>

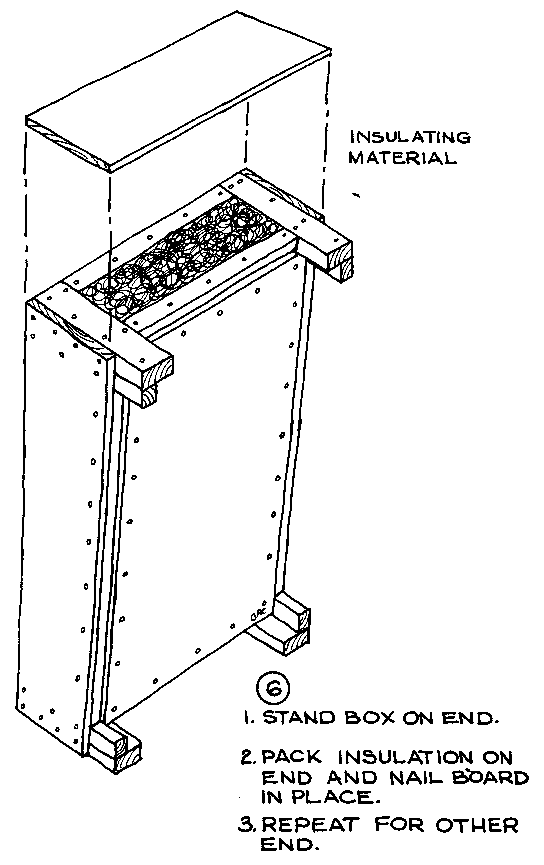

<FIGURE 101>
<FIGURE 102>
<FIGURE 103>
*
Make the air outlet slots.
-
Mark the position of the air outlet slots on the
upper sides.
-
Cut out the slots in any of the three ways
pictured.
*
Paint or stain the inside of the box with a dark color.
A flat black is good.
It is a good idea to put a wood
preservative on the outside if you have
it. Then paint
the outside with gloss paint or marine
varnish -- if
you can find them.
CONSTRUCT THE COVER
(FOR MODEL 1 and 2 DRYERS)
The same cover is
used for both dryers. It consists of a
rectangular
wooden frame with a
central ridge piece. It is covered with
a double
layer of
polyethylene film
<FIGURE 104>
Tools and Materials
*
Saw (preferably tenon saw), screw-driver, sharp knife or
scissors, tri square, marking gauge.
*
Lengths of timber: about 5cm x
2cm.
*
Transparent plastic (polyethylene) film (preferably .127mm
or heavier).
*
Screws (1.6cm x 8s C.S.).
*
Blued tacks (1cm) or large office stapler.
READ THE INSTRUCTIONS THROUGH
BEFORE YOU BEGIN
Make the frame so
that its length and width are each 8cm greater than
the box to be
covered. The cover will overlap the
dryer box by about
4cm in each
direction.
1.
Make the Frame
*
Cut the pieces for the frame to the right lengths.
* Put them together as
shown.
<FIGURE 105>
*
Dry the frame in the hot sun before putting on the plastic.
2.
Put the Lower Plastic Sheet on the Frame
*
Put the cover on while the wood is still warm and at a
time when humidity is low.
These precautions are necessary
to prevent condensation (fogging)
between the
layers of polyethylene.
*
Cut a piece of plastic sheet for covering the lower
side of the frame so that it is 8cm
wider and 8cm
longer than the frame.
*
Turn the frame upside down and lay
the plastic sheet in place.
Fold
one side of the polyethylene back
on itself to form a triple layer
seam 2cm wide.
<FIGURE 106>
* Start at the middle of
the frame and work toward both ends.
Stretch the plastic lightly but firmly
lengthwise. Tack
or staple through the seam at 8cm
intervals to fasten
this edge of the polyethylene to the
frame. DO NOT OVER-STRETCH
THE PLASTIC.
POLYETHYLENE WILL "GIVE" AND DISTORT
IF FINGERTIPS ARE DUG INTO IT.
SUCH DISTORTED AREAS ARE
LIKELY TO BREAK THROUGH DURING
USE. IT IS BETTER THAT
POLYETHYLENE SHOULD BE SLIGHTLY LOOSE
RATHER THAN OVER-STRETCHED.
*
Repeat this process at the other side of the frame.
Stretch the polyethylene across the
frame while tacking
or stapling.
*
Fold similar seams at each end.
Tack the ends of the
sheet to the frame.
Tuck the plastic neatly at each
corner.
Fasten firmly in place.
3 Put the Upper
Plastic Sheet on the Frame
*
Cut a piece of polyethylene sheet for covering the upper
side.
This sheet, when placed over the frame, should be
10cm wider and 10cm longer than the
frame. Turn the
frame upside down and, making a triple
fold seam as
before, tack or staple one edge to one
side of the frame
so that the seam overlaps the triple
seam of the lower
sheet.
<FIGURE 107>
*
Stretch the polyethylene over the ridge and around to the
lower edge of the other side
member. Make a folded seam
and tack or staple in place as before.
*
Stretch the polyethylene over one end of the frame, fold
and tack as before, cutting away any
extra material resulting
from the slope from ridge to side
member. Tuck
the corners of the sheet in neatly,
and tack firmly in
place.
Repeat for the other end of the frame.
4.
Attach the Covers to the Dryers
*
The covers do not weigh much and are likely to blow off the
dryers even in a light wind.
The cover can be kept on by
fastening hooks of stiff wire to each
corner of the cover
and swinging these hooks into place
around nails or pegs
fixed in the sides of the dryer.
*
Or, fasten lengths of strong twine or cord to one side of
the dryer, draw them tightly across
the cover, and tie
them to nails or pegs on the other
side.
CONSTRUCT THE DRYING
TRAYS
<FIGURE 108>
This is a simple
wooden frame with fine wire mesh stapled to its underside.
Two support runners
are nailed to the underside (over the edge
of the wire
mesh). If necessary, two small pieces
of wood may be tacked
over the edges of
the wire mesh to hold it in place at the ends.
However,
folding the edges of
the mesh over upon itself before stapling may be
all that is needed.
Make two trays, each
slightly smaller than 1m x 1m so that it will fit
the dryer box
well. It is a good idea to make two
trays because they
are easier to handle
than one large tray. Also, using two
trays means
that grains at two
different moisture levels can be dried at the same
time.
Simpler trays may be
made from local materials. Papyrus reed
matting,
or a frame with
slats of reed or split bamboo, for example, make an
excellent support on
which material can be dried. Coarse
hessian
sacking material, or
open weave grass or fibre matting stretched on
a frame also can be
used.
MODEL #2 SOLAR DRYER
Description
This dryer also is
for a 2m x 1m dryer. But it is not
portable like the
Model #1 Solar
Dryer. It is built on a permanent
location and is made
with clay bricks, or
similar material. Bricks composed of
local earth
and cement and
compressed by a CINVA-RAM work very well.
If hollow
bricks are used, the
hollows should be packed with dried grass, coir
fibre, or other
insulating material.
<FIGURE 109>
Choose a Site
A good place for the
Solar Dryer will be
*
high ground which is flat and level.
Make sure the location
is well drained.
*
out in the open -- not shaded by trees or buildings.
*
exposed to the prevailing wind.
The end of the dryer
should be facing the prevailing wind.
Tools and Materials
*
Large knife, axe, or machete
*
Coping saw or wood rasp
*
2cm chisel
*
Clay bricks or bricks made from similar material
*
Mortar or clay for laying bricks
*
Thick bamboo (6 to 7.5cm diameter)
READ THE INSTRUCTIONS THROUGH
BEFORE YOU BEGIN
1.
Prepare Site
*
Lay out dryer size by building up the corner blocks.
<FIGURE 110>
*
Prepare a floor of hard-packed earth or concrete mortar.
*
Dig a drainage trench around the dryer to protect it from
heavy rain.
The trench should be 23-30cm wide and 23-30cm
deep.
2.
Prepare Bamboo Pipes
*
Choose bamboo of even thickness with as few joints as
possible.
*
Cut bamboo to the same length as the width of the dryer.
*
Then prepare the pipes as follows:
<FIGURE 111>
*

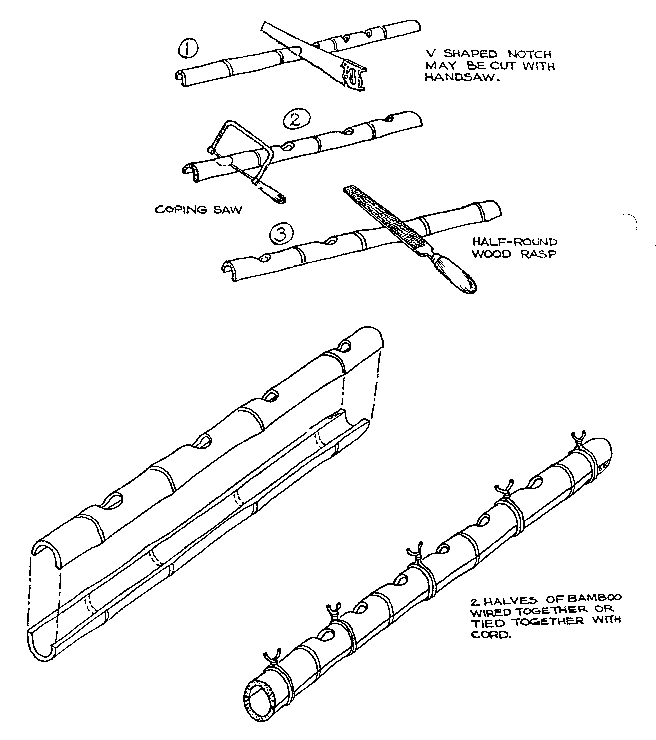

Cut holes, about 4cm in diameter, in each pipe.
Holes
can be made by using one of these
methods:
<FIGURE 112>
3.
Finish the Walls
*
Place the bamboo pipes in position in the second layer.
Cut the blocks short as necessary to
fit in the bamboo
pipes.
<FIGURE 113>
*
Put down the third layer of bricks.
*
Pack the holes around the bamboo with mortar or clay.
*
Put down the top layer of bricks and cut out the air
outlet slots or lay the top layer of
bricks leaving
one inch gaps as air-outlet holes
spaced along the
two sides.
<FIGURE 114>
4.
Paint the Inside
*
Paint the inside of the dryer a dark color.
Charcoal,
mixed with clay and water may be a
good coating.
5.
Construct Cover and Drying Trays as for
Model #1
MODIFICATION OF MODEL #2 SOLAR
DRYER
A Dual-Purpose
Solar/Fuel-Heated Dryer
It is possible to
build solar dryers which can work on solar heat for most
of the time, but
which can, if necessary, be artifically heated during
periods of heavy
clouding or rain.
A modification of
the Model 2 dryer will allow for this dual-purpose
operation.
This modification consists of building-in a
metal flue pipe
which runs through
the length of the dryer. This pipe
carries the heat
from a firebox built
at one end of the dryer. When drying
has to be done
in cloudy
conditions, the fire can be lit to provide heat for drying.
<FIGURE 115>
Either one large,
say, 11cm diameter pipe, or a number of smaller pipes can
be used.
When using smaller pipes, difficulties in
constructing a manifold
may arise.
But it may be possible to adapt an exhaust
manifold from an
old gasoline or
diesel engine for this purpose.
THE ONLY BASIC
MODIFICATION NEEDED IN CONSTRUCTING THIS DRYER IS THAT THE
WALLS MUST BE BUILT
HIGH ENOUGH TO ALLOW THE FLUE PIPE TO PASS UNDER THE
AIR-INLET PIPES.
An increase of 7.6cm
(or one brick) in height, should be sufficient.
The firebox may be
built in clay or brick, or a section cut from an old
oil drum may be used
for the purpose.
The base of the
firebox must be at a lower level than the dryer.
*
Make sure that this area is protected from any flooding which
may occur during heavy rains.
The flue tube
running through the dryer should slope upwards towards the
chimney to assist
draught.
<FIGURE 116>
When using artificial heat, the movement of
air through the dryer by
convection will
operate as it does when solar heat is being used.
However,
depending upon the
heat given by the fuel being used, it may be necessary
to close-off more of
the upper ventilation ports.
CAUTION:
*
Make sure that the part of the flue pipe passing through the
dryer is smoke-proof.
If it is not smoke-proof, smoke will
flavor the foods being dried.
A damper should also be placed
in the chimney. This damper must be
kept closed when sun-drying
is being carried out, or the flue pipe
may exert a cooling effect.
*
Make sure to site this modification so that the firebox end
faces into the prevailing wind.
This will assist draught through
the flue, and will also ensure that
any sparks from the chimney
are carried away from the polyethylene
cover.
MODEL #3 SOLAR DRYER
Description
This is a simple
dryer. It is not as efficient as the other
two in
conditions where it
is exposed to cooling winds, but it will provide
more efficient
drying than direct exposure to the sun, and will also
protect the drying
material from rain. It is essentially a
"sandwich"
Of two sheets of
corrugated galvanized iron roofing material placed so
that they form a
series of tubes. The lower sheet is
bedded in insulating
material to reduce
loss of heat. It is set in a sloping
position
with one end raised
about 15cm higher than the other. This
position
allows hot air to
rise and escape at the upper end, creating a draught of
air over the
material being dried. The material
which is being dried is
placed in the
hollows of the lower sheet.
There are a number
of possible ways of siting and constructing this dryer.
It can be
permanently sited or made portable.
Certain refinements can be
added to increase
its efficiency. For this reason the
construction of a
simple portable
model will be described first; possible modifications will
be described later.
The Portable Dryer
In this model, the
corrugated sheets are fastened to a shallow wooden box
which contains a bed
of insulating material. The box will be
about 10cm
high and 80cm
wide. The dimensions of the box will
depend on the final
size of the prepared
corrugated sheets, so the sheets are prepared first.
Tools and Materials
*
Hammer, saw, tri-square, wood chisel, pliers
*
2 sheets corrugated galvanized iron
*
Timber for bottom and sides of box
*
Nails or coat-hanger wire
* Black paint
1.
Prepare the Sheets
*
When purchased, the sheets will be packed closely together.
Turn the upper sheet 180 [degrees] so
that the sheets are on top
of each other.
The upper sheet will tend to slip sideways
and will not remain evenly positioned.
*
Mark a line along the edges of
each sheet about 1cm from the
edge.
Using pliers, and moving
gradually along the sheet, bend
the edges down to form flanges
which are level with the plane
of the sheet.
Once the edges
have been bent into position,
lay each flange along the edge
of a piece of wood and beat with
a hammer until it is flat and
smooth.
The sheets will now
lie properly together in the
correct position.
<FIGURE 117>
2.
Hinge the Sheets
*
The sheets must be held together so they can be easily positioned
during future use.
This is done using wire rings.
*

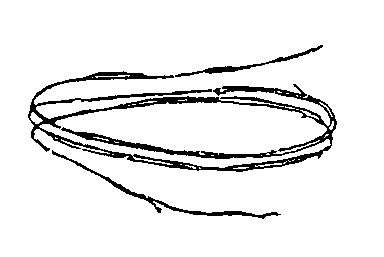

Wind a piece of suitable wire spirally around a 1cm diameter
form (e.g., the handle of a wooden
spoon) to form 6 loops.
Remove from the form and pull the ends
of the wire so that
it forms a loose spiral.
Cut this spiral with the pliers
so as to form a number of rings with
overlapping ends.
<FIGURE 118>
*
Punch five holes through the flanges at one edge of each
sheet, using a nail and a hammer.
These holes should be
positioned as follows:
one hole about 7.5cm from each end
of the flange, one hole in the centre
of the flange, and
two holes midway between these holes.
Pass the wire rings through these
holes and close the
rings by pressing the ends
together. This effectively
hinges the sheets together and allows
accurate positioning.
3.
Prepare the Dryer Box
*
The shallow support and insulating box can now be constructed
to fit the dimensions of the lower
sheet of corrugated iron:
cut slots in the upper edges of the
one side of this box to
provide space for the hinge rings.
<FIGURE 119>
*
Pack the box with insulating material, e.g., wood wool, dried
grass or leaves, or other similar
material.
*
Place the corrugated sheets in position and fasten the lower
sheet to the frame by nailing through
the flanges along each
edge and through the points where the
sheet contacts the ends
of the box and the central support
batten.
*
Close the openings at each end between the corrugations of
the sheet and the wooden frame by
filling with cement, plaster
or clay.
4.
Paint the Dryer
*
Paint the upper surface of the top sheet with a flat black
paint.
Using a suitable primer to be sure of sticking to
the metal.
*
Treat the wood of the box with preservative, or paint with
gloss paint if available.
USING THE PORTABLE
DRYER
Siting
*
Site with the length of the dryer in a north-south
direction, preferably in a position
where it is sheltered
from the wind.
*
Raise one end so that it is 15cm higher than the other.
*
Make sure the rays of the sun strike the upper sheet as
directly as possible.
(The end to be raised will depend
on the latitude and season of the
year. For example, in
latitudes more than 5 degrees north of
the equator, the
northern end of the dryer should be
raised in winter
and the southern end in summer.)
Protecting from Rain
There is a risk that
driving rain may enter the upper end of the dryer
and wet the
contents. It is thus necessary to fit a
shelter plate to the
upper sheet at this
end of the dryer.
*
Nail a wooden batten across one end of the upper surface
of the top sheet.
*
Nail to this wood a strip of metal which is the full width
of the sheet, and which will jut out
about 15cm beyond the
end of the dryer.
This metal can then be bent downwards
in a gentle curve at its outer edge so
as to shelter the
open end of the dryer.
<FIGURE 120>
Fitting a
Polyethylene Cover
The efficiency of
the Model 3 dryer can be greatly increased by fitting
a polyethylene cover
over the top metal sheet. The plastic
creates an
insulating air space
between the polyethylene and the corrugated sheet.
*
Build a simple wooden frame over the top sheet using two
vertically placed battens along each
of the flanges, and
two joining battens across each end of
the sheet.
<FIGURE 121>
*
Fill the spaces between the corrugations and the end battens
with plaster, clay, or cement.
Stretch a single sheet of polyethylene
over the frame.
Tack or staple the sheet in place.
*
Keep the slots in the side piece of the frame (necessary to
accommodate the hinge rings) as small
as possible. They should
only be cut enough to allow clearance
for the rings.
The polyethylene
cover will protect the upper corrugated sheet from the
cooling effects of
wind and rain. It also insulates the
dryer so that
higher drying
temperatures are possible.
THE PERMANENTLY
SITED MODEL 3 DRYER
The dryer described
above can be permanently sited on a clay platform,
thus avoiding the
need to construct a support and the lower insulating
box.
The clay platform will provide
insulation. This type is built as
follows:
*
Flange the sheets and hinge together as described for the
portable dryer.
*
Nail wooden battens about 4cm x 2cm across the lower side
of the lower sheet at each end and at
the middle, to
provide rigidity.
<FIGURE 122>
Construct a simple sloping clay
platform the size of the
lower sheet and 15cm above ground
level at one end and
30cm above ground level at the
other. Mix large quantities
of dried grass or leaves with the
clay.
While the clay is still wet and soft,
bed the lower sheet
in position so that the clay moulds to
the corrugations
of the sheet.
Allow the clay to harden.
<FIGURE 123>
CAUTION:
Make sure to site this dryer in a position
which will give the
most effective exposure to
the sun at the time of year when
the most drying is being
done.
<SOLAR DRYERS>
PART TWO:
OPERATING
INSTRUCTIONS
General Instructions
Start drying as
early as possible in the day to get maximum exposure to
the sun.
Once material has been placed in the dryer
and the cover placed
in position, do not
lift the cover until drying is completed for the day:
taking the cover off
will allow a lot of heat to leave the dryer.
Cleanliness
Brush the dryer out
daily to get out dust, and to remove any pieces of
dried material
spilled from drying trays.
Keep the drying
trays clean; wash them often.
Temperature Control
Control the
temperature inside the dryer by opening or closing the upper
air outlets.
Temperature may be measured by putting a
thermometer in one
of the upper air
outlets. When doing this, shade the
thermometer from
direct sunlight by
inserting a card beneath the cover.
Temperatures
measured in this way
will be the maximum (not necessarily the average)
internal
temperature.
Or, temperatures at
the level of the drying material may be measured
by drilling a hole
through the side of the dryer and inserting a thermometer.
Again, make sure
that the bulb is shaded from direct sunlight.
Closing the upper
ventilation outlets will increase internal temperatures.
However, if moisture
begins to collect inside the dryer you must start
opening the outlets.
In cases where
opening all the upper outlets still results in temperatures
which are too high
for the material being dried, additional outlets should
be cut in the upper
edges of the sides.
Shade Drying
Some materials,
particularly green vegetables, carrots, plantain and some
varieties of sweet
potato, may lose color and Vitamin A during direct
exposure to
sunlight. For these materials, shade
drying is useful (but
not completely
necessary).
To do shade drying,
fit sheets of thin metal immediately below the cover.
Paint the metal
(galvanized sheet or beaten-out tin containers) black on
both sides.
The size of the metal sheet should be just
less than the
internal length and
width of the dryer. Support the sheet
on nails driven
into the inner sides
and ends of the dryer. Put the nails in
not more than
half-an-inch below
the upper edges of the sides.
Make sure the sheets
do not touch the lower side of the polyethylene cover
(otherwise their
heat may cause it to melt). But the
sheets should be
high enough so that
hot air from beneath the sheet can still escape
through the upper
air outlets.
When fitted
properly, as described above, these sheets will send almost
all of the heat they
receive to the air inside the dryer, and
the internal
temperatures are similar to those made by sunlight.
Use of
metal shading sheets
can, in fact, assist drying, since their presence
encourages more
effective convection air movement through the dryer.
Fogging
If fogging occurs
during use, withdraw tacks or staples from a short
length at each end
of the cover, open up the polyethylene to allow moisture
to escape while the
dryer is in operation, and then refasten the
polyethylene in
place.
"Storage"
Heating
A simple
modification to either the Model 1 or Model 2 dryers, which
will enhance
efficiency of drying during periods of intermittent clouding
or rain, is the
placing of a layer of dark-colored (or black-painted)
rough-surfaced
stones in the bottom of the dryer.
These stones should be
egg sized or
slightly larger.
During periods of
sunshine, the stones will become heated.
Then when the
sun is covered by
clouds, the stones maintain the internal temperature
by giving up heat to
the air.
DRYING GRAIN CROPS
To make sure crops
do well in storage, they should be carefully dried,
either "in the
head" or after threshing, before they are placed in storage.
If dried "in
the head," grains should be threshed before storage since
closely packed grain
is less subject to insect attack.
Groundnuts can be
dried either in the shell or after shelling.
Storage
in the shell
provides protection against insect attack.
Shattering sesame
may be harvested before pods are quite ripe and dried
in trays with very
fine mesh bottoms. It will then shatter
in the dryer.
But since all the
seeds will be retained, this method of dealing with
sesame has great
advantages.
Threshed grains
should be spread in a 1cm to 4cm deep layer on drying
trays of appropriate
mesh size, so as to give a loading of about 7-10kg
per square
meter. For bulky material such as
unthreshed finger millet
or sorghum, layers
up to 7.5cm deep can be used. For
groundnuts in the
shell, layers may be
up to 5cm deep.
For very small
seeds, such as finger millet or sesame, trays with a very
fine mesh will be
needed. Mosquito netting or tightly
stretched hessian
sacking would be
appropriate.
Appendix A
This Appendix
contains some examples of different ways of presenting
grain storage
information. The examples are from
Asia, Africa, and
South America, thus
highlighting the fact that good grain storage is
an important subject
all over the world.
GRAIN STORAGE IN MUD CRIBS
The traditional
Botswana designs of mud cribs are
easy to build and
the materials cost very little. By
taking more care
over some details during construction,
you can reduce the
risk of insect damage to stored grain.
Issued by the
Department of Agriculture, Information Service, Private Bag 27, Gaberones.
BUILDING A MUD CRIB
Choose a place where
the ground is firm and well drained, because a crib full of grain is
heavy and may sink into soft or wet ground.
Bring several large,
smooth stones and bury them firmly in the ground to form a base.
Use strong, straight
poles for the main crib supports and lay them on the stones.
Cut
notches or fix pegs at the ends of these
poles to prevent the floor poles from slipping.
Make a floor of mud
and build up the mud walls.
Reinforce the mud ceiling with poles.
<FIGURE 124>
Make an outlet at
the bottom of each compartment to permit easy removal of grain.
Use an
empty coffee or dried milk tin with a lid of
the press-in type. First cut out the
bottom.
then build the tin into the wall at floor
level.
Build the walls
right up to the ceiling so that each compartment is completely separate
and there is no chance of insects moving
from one compartment to the next.
Plaster the inside
walls and ceilings. Insects hide in
cracks and crevices and in the poles
of the ceilings.
Therefore plaster the ceilings also, so that there is no gap
between
the walls and ceilings.
<FIGURE 125>
Cover the completed
mud crib with a thatch roof supported on separate poles.
Thatch
should be thick and rain proof especially
along the ridge. The roof must also
extend
well beyond the crib so that rain cannot
reach the mud walls, and the hot rays of the
sun never shine on the crib.
The plug for filling
the crib should be smeared over with mud to make the crib airtight
and insect proof.
Grain is removed by opening the lid of the tin at the bottom of
the
wall.
USING A MUD CRIB
The crib should be
repaired before each harvest. Mend the
thatch and re-plaster over
cracks in the walls, floor and ceiling.
Thoroughly clean out
the empty crib by brushing. Do not keep
old baskets, skins, sacks,
etc. on top of the mud crib.
These things harbour the beetles that attack
grain and it
is easy for them to walk into the crib.
Make sure that new
grain is always quite dry and has been winnowed or sieved before you
put it into a
crib. Never mix new grain with old
grain remaining from the previous year.
To stop insects
damaging your grain, admix Kopthion or Pyrethrum dust (1 packet of dust
to each 200 lb. of
grain.) These insecticides are
preferred but the ash from cattle dung or
wood may be
used. Mix not less than one bucket of
sieved ash with each 200 lb. of grain.
Examine the
condition of your grain every 2 months by removing a sample and looking for
live insects.
If you find them, remove the grain, winnow
it and admix Kopthion or pyrethrum
before returning it
to the crib.
CAUTION:
Grain intended for
human consumption should be first sieved or winnowed and washed - especially
if it has been treated with insecticide or
ash.
If you would like
further help, ask your Agricultural Demonstrator.
KEEP THIS LEAFLET FOR FUTURE REFERENCE
Printed by Government Printer
Gaberones
HOW TO ....
PROTECT YOUR
GRAIN IN STORAGE
FROM DAMAGE
Distributed through:
SAVE GRAIN CAMPAIGN
(Country Wide Programme)
DEPARTMENT OF FOOD,
NEW DELHI-1.
Apply the 5 Golden Rules:
*
Dry and clean your grain before storing.
*
Use dunnage to avoid moisture damage to grain
stored in bags.
*
Use domestic bins or improve your storage
structure.
*
Fumigate with EDB ampoules to avoid insect
damage.
*
Use anticoagulant for rat control.
<FIGURE 126>
<FIGURE 127>
<FIGURE 128>
FOR ADVICE ON YOUR
STORAGE
PROBLEMS AND TRAINING
CONTACT ANY OF THE
FOLLOWING PLACES
IN PERSON OR
BY POST:
SAVE GRAIN CAMPAIGN
Department of Food
Ministry of
Agriculture
Krishi Bhavan
New Delhi-l.
OR
Post Box No. 10
Post Box No. 7823
Hapur (U.P.)
Bombay
Post Box No. 509
Post Box No. 22
Patna (Bihar)
Bapatla (A.P.)
Post Box No. 158
Ludhiana (Pb)
Prepared by:
INDIAN GRAIN STORAGE INSTITUTE
HAPUR (U.P)
<FIGURE 129>
PRESERVE CORN SAFELY IN
STORAGE BARNS
MINISTRY OF
AGRICULTURE
Division of Stored Products-Extension
Managua, D.N.,
Nicaragua, C.A.
Preparado por:
Ramiro
Lopez
Asistente de Extension de
Productos Almacenados.
Revisado por:
Agro. Francisco Estrada
Jefe de
Extension de
Productos Almacenados,
M.A.G.
EVITE PERDIDAS DE SU
MAIZ EN LA TROJA.
Cada ano, durante el periodo comprendido
entre la cosecha y el momento en que
el producto llega al
consumidor, el exceso de humedad del grano, el ataque de
roedores, hongos,
insectos y pajaros, originan perdidas considerables al agricultor
y al comerciante.
<FIGURE 130>
La manera de evitar tales perdidas, es el
control sobre las causas antes mencio
nadas, mediante un
manejo eficiente de los granos, y dandoles una adecuada proteccion
durante el
almacenamiento.
La humedad, el primero de estos factores,
puede controlarse de una manera
efectiva, mediante
un buen secamiento del grano, antes de guardarlo en el almacen
o granero; bajando
su contenido de humedad hasta un 12% o sea cuando este bien
seco.
<FIGURE 131>
PREVENT STORAGE
LOSSES OF YOUR CORN IN THE BARN
Each year, during the period between the
time of harvest
and the time when
the grain reaches the consumer, there are
considerable losses
for the farmer and merchant. These
losses
are due to excess
grain moisture, the attack of rodents, molds,
insects and birds.
MOISTURE
BIRDS
MOLD RODENTS
INSECTS
These factors affect
the good storage of grain
The best way to prevent such losses is to
control the
causes by proper
handling and adequate protection of the grain
during storage.
Dampness, the first of these causes of
grain loss, can be
controlled
effectively by good drying before storage. The safe
moisture content for
corn is 12% or lower.
DRYING THE
PRODUCT TO 12% OR LOWER
Practicamente, podemos calcular, si la
humedad en el grano esta buena para
conservarlo, cuando
al morderlo, este se quiebra, sin presentar elasticidad y que
no este lechoso.
Tambien podemos saber que el grano no esta
aun bueno para almacenarse, cuando
al introducir la
mano entre estos granos, sentimos el calor proveniente de ellos,
que por exceso de
humedad se encuentra en plena actividad respiratoria; en cambio,
se sentira fresco el
grano cuando debido al secamiento, haya disminuido dicha actividad;
entonces los granos
estaran reposando y podran ser almacenados, sin mucho
riesgo de que se
desarrollen hongos, y sin peligro de que se pudran.
<FIGURE 132>
La humedad y el calor excesivos, son
ambientes propicios para que se desarrollen
hongos que
ocasionaran dano al producto que se almacena.
El dano por roedores puede evitarse en gran
parte proporcionando al local de
almacenamiento una
adecuada proteccion, contra el acceso de las ratas.
Tambien
manteniendo los
alrededores del granero limpio de malezas y desperdicios, ya que
estos roedores
prefieren no movilizarse por sitios despejados.
Es muy efectivo para su control el uso de
raticidas en forma de cebos, de los
que se venden en el
comercio, tales como Racumin, Zelio, etc.
No se deben dejar estos cebos al alcance de
los ninos ni de los animales domesticos,
porque son productos
muy venenosos.
In practice, we can check the moisture
content in the grain
which is safe for
good storage by biting it. Dry grain is
hard,
so it will break
with a sharp crack, rather than crushing easily
like wet grain.
We can also find out if grain is in good
condition for storage
by touching it.
If we feel heat rising from the grain, it
is too wet.
If the grain is excessively wet, it will
respire,
producing heat and
moisture. On the other hand, dry grain
will
feel cool.
If grain is giving off heat, it should be
dried
immediately to
assure storage without risk of mold development
and rotting.
DEATH
MOLD
TOO MUCH
LITTLE MOISTURE
HEAT
LITTLE HEAT
TOO MUCH
12% MOISTURE
MOISTURE
Moisture and excessive heat are favorable
conditions for
the growth of molds
which will damage the grain.
Damage by rodents can be avoided to a large
extent by
protecting the
storage area against the invasion of rats.
Also,
the surrounding
areas of the granary should be kept clean of
weeks and garbage as
rodents prefer not to move through open,
clear areas.
The use of pesticides such as Racumin,
Zelio,
etc., in the form of
bait, is effective for control of rodents.
These pesticides should not be Left within
the reach of
children or pets
because they are extremely poisonous products
and can cause
serious illness or death. Rat poisons
should
always be used very
carefully, following recommended instructions.
<FIGURE 133>
El dano por insectos, es el que
generalmente causa mayores perdidas en los
productos que se
almacenan. Su control se debe ejercer
desde el momento en que
esta comenzando a
florecer en el campo el maiz que se piensa cosechar y almacenar.
En este tiempo en
que ya esta espigando el maiz, los insectos pueden estar en
alguna troja
infestada, cercana al plantio de maiz; vuelan hacia el campo en busca
de nuevo alimento y
comienzan a penetrar la mazorca por las aberturas de la tuza:
resultandoles mas
facil la penetracion, cuando esta tuza ofrece escasa protection
al grano.
Es por esto que algunas variedades
mejoradas, se pican mas facilmente que las
variedades criollas,
pues estas, generalmente poseen buena cobertura.
<FIGURE 134>
PLACEMENT OF BAIT FOR
MICE/RATS
CANS
BAMBOO
BOXES
IN PLACES TRAVELED BY
RATS OUT
OF THE REACH OF CHILDREN
AND FARM ANIMALS
Generally, the greatest losses in stored
products are
caused by insect
damage. Insect control should be
exercised
from the moment the
corn is beginning to mature in the field
through the time
when the corn is harvested and stored.
Insects
may be in an
infested barn, near the grain field, flying through
the field in search
of new food, or already beginning to
penetrate the ear of
corn through openings in the corn husk.
The only natural
protection of the ear of corn is the husk, which
can be penetrated by
insects.
Some of the newly developed varieties of
corn have husks
which are more
easily penetrated than traditional domestic
varieties.
Extra precautions against insect invasion
need to be
taken with these
newer varieties.
THE CYCLE OF INFESTATION
BEGINS IN THE
FIELD
PREVENT INSECTS FROM
FLYING TO THE FIELD
DESTROY INFESTED REMAINS
AND CLEAN THE BARN
INSECT
MATURE CORN
INFESTED BARN
INFESTED CORN
SELECT ONLY HEALTHY
EARS OF CORN
FOR STORAGE
<FIGURE 135>
111 SQUARE YARDS
6
OUNCES (175 c.c.)
MALATHION LIQUID 57%
1
GALLON WATER
In order to prevent infestation in the
field, the granary
should be cleaned of
all the remains of the previous harvest,
which may be
infested, and these remains burned or destroyed.
Next make an
application of Malathion liquid of 57% by diluting
17 1/2 spoons (16
oz.) of this insecticide in a gallon of water.
Using a sprayer,
completely cover the ceiling, walls, and
floor surfaces of
the granary. With a gallon of this
mixture,
a surface of 111
square yards can be covered.
APPLY MALATHION
LIQUID ON THE
WALLS, CEILING AND FLOOR OF THE
GRANARY
MATURING CORN
SWEEP AND CLEAN THE
GRANARY
CLEAN THE
SURROUNDING AREA
BURN THE
REMAINS
Al llevar el maiz cosechado hacia la troja
o granero, para almacenarlo, se deben
seleccionar las
mazorcas sanas, evitando guardar mazorcas picadas que infestarian
a las otras
mazorcas.
<FIGURE 136>
No se debe dejar el maiz ya maduro doblado
o sin doblar en el campo, por mucho
tiempo, porque queda
expuesto a la infestacion de insectos y al ataque de ratas
y pajaros, durante
un periodo mas prolongado. Se debe
proceder a la cosecha, tan
pronto como lo
permitan las condiciones del ambiente y el contenido de humedad del
grano.
Para proteger al maiz que se va almacenar
en trojas, se recomienda aplicar el
insecticida
Malathion en polvo al 2%. Este se debe
aplicar por capas, es decir colocando
primero, sobre el
piso donde estara la troja, una ligera capa de insecticida,
despues se coloca la
primera capa de mazorcas, luego otra capa de insecticida,
y asi sucesivamente
hasta dejar la troja llena a la altura deseada.
Las dosis
que se recomiendan
para el uso de este insecticida estan de acuerdo al tamano de
las mazorcas.
Asi, tenemos que para los hibridos y
variedades mejoradas, como
el tamano de la
mazorca es un poco grande, hay que aplicar una onza de Malathion
2% en polvo
(Triangulo Verde) por cada 100 mazorcas con tuza.
Para las variedades
criollas, como las
mazorcas son mas pequenas, se debe aplicar una onza del
insecticida por cada
150 mazorcas con tuza.
<FIGURE 137>
When the harvested corn is brought to the
barn or
granary for storage,
the best ears of corn should be selected.,
avoiding the storage
of ears which are already infested with
insects, as these
insects can easily infest other ears of corn.
SELECT ONLY HEALTHY
EARS OF CORN FOR STORAGE
The ripened corn, whether piled on the
ground or still
on the stalk., should
not be left in the field too long because
over a prolonged
period of time it is exposed to the
attack of rodents
and birds. The harvest should be
carried
out as soon as the
climatic conditions and moisture content
of the grain permit.
To protect the corn to be stored in
barns, it is
recommended that 2%
Malathion insecticide in powder be applied.
This should be applied in layers.
First, dust a thin
layer of insecticide
on the floor where the grain will be
stored.
Next, after the first ears of corn are
placed, dust
another layer of
insecticide and so-on until the barn is filled
to the desired
level. The doses recommended for the
use of this
insecticide are in
accordance with the size of the ears of corn.
Thus, we have to
apply one ounce of 2% Malathion in
powder
(green triangle) for
every 100 ears of hybrid and newly developed
varieties.
As the ears of the native varieties are
smaller, one
ounce of insecticide
for every 150 ears should be applied.
Este polvo debe ser espolvoreado sobre la
superficie de todas las mazorcas, de
modo que las proteja
totalmente. Se puede lograr una
aplicacion uniforme, utilizan
do una media de tela
de Nylon o cualquier bolsa de tela rala, que permita al polvo
filtrarse facilmente
hasta las mazorcas.
<FIGURE 138>
Se debe aplicar exactamente la cantidad de
insecticida que se recomienda y seguir
los metodos
indicados, para evitar malos efectos del polvo por una defectuosa
aplicacion.
<FIGURE 139>
APPLICATION OF INSECTICIDE IN CORN
BARNS
POWDER (GREEN TRIANGLE)
FOR
EVERY 100 EARS
FOR EVERY 150 EARS
NATIVE CORN
HYBRID CORN
This powder should be sprinkled on the
surface of all
of the ears of corn
in a way that totally protects them. A
uniform application
may be obtained by using a nylon sock or
any sack or bag with
a loose weave which permits the powder to
be filtered easily
through to the ears of corn.
Apply 2% Malathion
in
powder uniformly
over
each layer
In order to avoid problems caused by the
improper
application of
insecticide, the exact recommended quantity
should be used and
the indicated methods followed.
Appendix B
This Appendix
contains excerpts from an article which appeared in
Tropical Stored
Products Information in 1971. It is
included here
to give you some
idea as to the types and number of moisture meters
which are
available. A Table included at the end
of this article
also lists the names
and addresses of the manufacturers and/or suppliers
of the meters so
that you can write for further information.
The following
material is taken from Tropical Stored Products Information,
Tropical Products
Institute, 1971 VOL. 21
GUIDANCE IN THE SELECTION OF
MOISTURE METERS
FOR DURABLE AGRICULTURAL
PRODUCE
by
T N
Okwelogu
Tropical Stored
Products Centre
(Tropical Products
Institute), Slough
Sources of
Information
The three principal
sources of information available to the prospective user are (1) newspapers,
magazines
and journals, (2)
manufacturers' brochures, and (3) organizations in a position to give unbiased
information about
moisture meters.
Some newspapers,
magazines and journals, which occasionally contain information about meters,
include
the Financial Times,
Electronic Age, and Power Farming.
Whilst manufacturers are always helpful in
supplying plenty of
information about their own range of meters, information about a much wider
range of
meters will be more
likely to be obtained from organizations having unbiased interest in these
instruments.
Examples of such
organizations are (1) Tropical Stored Products Centre, (Tropical Products
Institute),
Slough, England, (2)
Grain Storage Department, Pest Infestation Control Laboratory, Ministry of
Agriculture,
Fisheries and Food,
Slough, England, (3) National Institute Of Agricultural Engineering, Wrest
Park,
Silsoe, Beds,
England, (4) Grains Division, Agricultural Marketing Service, United States
Department of
Agriculture,
Agricultural Research Centre, Beltsville, Maryland 20705, USA.
Articles on moisture meters
sometimes appear in
the publications of these and other similar organizations.
Tables I and II give
details of some available moisture meters, particularly how they can be
obtained and
the commodities with
which they may be used. These details
are based upon information provided by the
manufacturers of the
meters.
With every piece of
information, it is important to ask the question:
is this information sufficient for a
decisive opinion to
be formed about the meter? Where the
answer is `no', further enquiries should be made.
Factors to Consider
in Making a Choice
It can be seen from
Tables I and II that for any specific purpose, several meters can be found,
making the
problem of choice a
real one, indeed. A satisfactory
selection is likely to be achieved when adequate
thought has been
given to the following factors:
1. Meter types and their implications.
2. Characteristics of the commodity.
3. Requirements of the work for which a
meter is sought.
4. Business considerations.
Principles and
implications of Meter Types
Most manufacturers
indicate the principles upon which the action of their meters is based.
An appreciation
of the implications
of such principles will, no doubt, be of considerable value in deciding which
of
several meters will
be the most suitable. The meters
commonly used with durable agricultural products
fall into five
groups, according to the principles of their action:
1.
Those involving chemical interaction between calcium carbide and the
product water, with the
evolution of acetylene gas, the
pressure of which is subsequently measured.
2.
Those involving heat-drying of the product, the attendant loss being
ascribed to evaporated
produce water.
3.
Those involving the measurement of electrical conductivity (or
resistance) of the product, since
the value of this property is
relatable to the moisture content, within a suitable range of
moisture contents.
4.
Those involving the measurement of the dielectric constant of the
product (or capacitance of
the electrical system of which the
product is a component), since the value of this property
changes with the moisture content,
within a suitable range of moisture contents.
5.
Those involving the measurement of that atmospheric relative humidity
which is in equilibrium
with the product moisture, since,
under equilibrium conditions, there is a definite relationship
between the moisture content of a
product and the ambient relative humidity
Heat-drying methods require a
suitable source of power-supply or fuel, which may not be
available.
Methods based on the evolution of acetylene
gas require regular, supplies of fresh calcium
carbide, which is
not a safe commodity to handle by post, because of the risk of explosion.
Meters measuring
the inter-granular
relative humidity require, firstly, a
knowledge of the relationship between the produce
moisture content and
the relative humidity of the inter-granular air:
secondly, a periodic check on
their calibrations;
and thirdly, in some cases, large quantities of produce which must have
remained undisturbed
for sometime prior
to testing.
The electrical
meters are faster, and in the main, less demanding on calibration checks, but
require
skilled
servicing. Also, they give less
reliable readings outside the middle region of the range of moisture
contents for which
they are calibrated. The accuracy of
the probe-type electrical meters is affected
by variations in the
pressure exerted by the produce on the electrodes, while the consistency of the
readings
of those meters
which measure the dielectric constant is affected by inconsistent packing of
the
sample in the test
chamber.
Attention has been
focused above on the less favourable features of the meter groups mainly
because they
are more likely to
be overlooked. Information on the
merits of any meter will not normally be difficult to
obtain, and Tables I
and II show the relative merits of the meters discussed in the present article.
Characteristics of
the Commodity
The commodity to be
tested imposes a number of limitations, and these must be taken into account
when
considering the use
of any meter. Perhaps the best way to
do this is to answer questions such as the
following.
First, is the
chemical nature or any normal pre-treatment of the produce likely to interfere
with the use of
the meter?
For instance, meters measuring electrical
conductivity may not be suitable for produce, like
salt-fish, which
will become highly conductive when damp.
Again, for commodities like dried egg or milk,
a heat-drying meter
may not be suitable.
Second, is the
moisture content to be measured outside the range for which the meter is
calibrated? For
example, very few
electrical meters are known to be suitable for a product like made-tea whose
moisture
content is normally
required to be below 5 per cent, that is outside the range of moisture contents
for
which most
electrical meters are calibrated.
Third, is the
milling property of the produce incompatible with the effective use of the
meter? For
example, commodities
like macadamia nuts, palm kernels and copra are not easily ground, while others
like cashew nuts
(not the kernels) are simply not amenable to grinding.
Fourth, are the unit
size and shape of the produce likely to affect the efficient use of the
meter? The
construction of the
meter may be such that it cannot be pushed into floury or powdery produce
without
hampering the
measurement of moisture. Again, larger
products like cocoa beans, unshelled groundnuts,
cashew nuts and
pieces of illipe nuts (Shorea spp.) will present packing problems with some
meters.
If the answer to
each of the above questions is an unqualified `No', then the meter may be
considered
suitable for the
product. But a `Yes' answer can make
all the difference between a meter being chosen
or rejected.
In such a case, steps should be taken to see
what, if anything, has been done to solve the
problem, either by
the manufacturer or by someone else.
Nature of the
Situation Needing a Moisture Meter
In an article of
this kind, it is not easy, even if it is possible, to cover all the situations
where the use
of a moisture meter
may be desired. However, such
situations are likely to fall into one or the other of
the following
categories:
1.
Knowing whether grain is at the right stage for harvesting.
2.
The processing, (eg drying or milling), of foodstuffs.
3.
Bulking or packaging produce for storage.
4.
