- If the rivet shank is too long. the superfluous material forms a wreath at the head of the closing head.
Figure 33 - Riveting faults

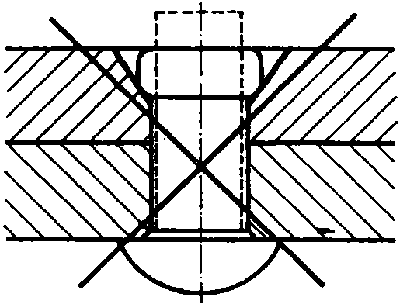

- If the rivet shank is too short, the closing head is not sufficiently formed,
Figure 34 - Riveting faults
- If the plates are not enough tightened by the rivet setter, the shank is squeezed between the plates, a wreath appears and the closing head is not correctly formed.
Figure 35 - Riveting faults

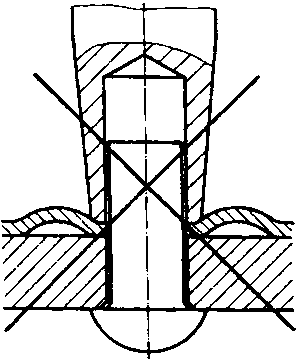

- If the hammer blows on the rivet setter are too strong, the upper plate is squeezed too much and bows.
Figure 36 - Riveting faults

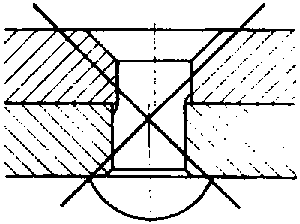

- If the bore holes are heavily misaligned, the rivet shank will be notched, so that the rivet cannot stand high shearing loads.
Figure 37 - Riveting faults

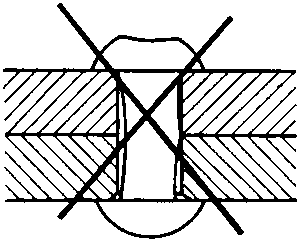

- If the rivet hole is too large, the rivet shank bends, the closing head is not formed.
Figure 38 - Riveting faults
Note:
Use the corresponding rivet setter and rivet header for the rivet you have chosen,
Why shall only a few, well-aimed blows be made when riveting the
closing
head?
________________________________________________________________________________________________________________________________________________________________
How can riveted joints be
undone?
________________________________________________________________________________________________________________________________________________________________
What kinds of riveting faults could have been made if it is to
be seen that the closing head is not formed
correctly?
________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
 |
