3. Kinds of riveted joints

Movable rivetings are always made in the form of individual rivetings; the parts can be moved against one another after being riveted.

Fixed rivetings are mostly made in the form of riveted seams at plates.

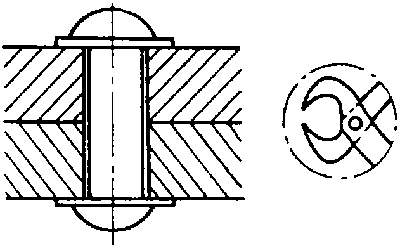

Figure 11 - Movable riveting (example: tongs)

We distinguish between:

- Kind of joint - butt joints, lap riveted joints

Figure 12 - Single-row lap riveted joint

- Number of rows - single-row, multirow

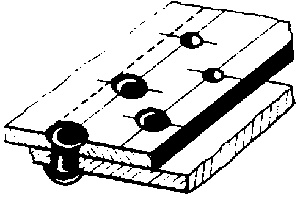

Figure 13 - Double-row parallel lap riveted joint

- Arrangement of rivets - parallel, zigzag

Figure 14 - Double-row parallel butt riveted joint

Figure 15 - Double-row zigzag butt riveted joint
