		Operations on Smooth Miller and Thicknessing Miller - Course: Mechanical woodworking techniques. Trainees' handbook of lessons (Institut für Berufliche Entwicklung, 10 p.)
			(introduction...)
			1. Purpose of Milling at the Smooth Miller
			2. Construction of the Smooth Miller
			3. Setting of the Smooth Miller
			4. Milling of the Workpieces
			5. Purpose of Milling on the Thicknessing Miller
			6. Construction of the Thicknessing Miller
			7. Setting of the Thicknessing Miller
			8. Milling of the Workpieces
			9. Tasks

1. Purpose of Milling at the Smooth Miller

Milling on the smooth miller serves for making plane broad faces as well as narrow faces being at an angle to the broad face. Milling of broad and narrow faces is the first step of machining the workpieces on the thicknessing miller. The plane faces are the determining factor for the quality of the final product.

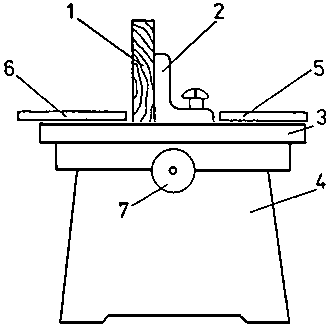

Figure 1 - Milling of the broad face

1 workpiece, 2 stop bar, 3 feeding table, 4 column, 5 rear cover of the cutter spindle, 6 front cover of the cutter spindle, 7 handwheel for adjustment of table

Figure 2 - Milling of the narrow face

1 workpiece, 2 stop bar, 3 feeding table, 4 column, 5 rear cover of the cutter spindle, 6 front cover of the cutter spindle, 7 handwheel for adjustment of table
